Модульный шаровой кран DBB
Шаровые краны
- домашняя страница/
- Продукты/
- Шаровые краны
Мы являемся профессиональным производителем шаровых кранов в КНР.
Стандарты проектирования: API 6D, API 608, ISO 17292, BS 5351.
Диапазон размеров: 1/4 - 60 дюймов.
Диапазон давлений: класс 150–2500 фунтов, 10 000 фунтов на квадратный дюйм (продукты API 6A)
Диапазон материалов: литая сталь, кованая сталь, углеродистая сталь, нержавеющая сталь, легированная сталь, бронза, Ti.
Торцевые соединения: фланцевые (FF, RF, RTJ), сварка враструб (SW), резьба (NPT, BSP), сварка встык (BW), ступица
Конструкции кузова: вход с торца, вход сверху (удобно для онлайн-обслуживания)
Типы кузова: разделенный корпус из 2 частей, разделенный корпус из 3 частей
Соединение корпуса и крышки: крышка с болтовым креплением, цельносварная крышка (для работы в опасных условиях требуется более длительный срок службы с меньшей точкой утечки)
Стандарты проектирования: API 6D, API 608, ISO 17292, BS 5351.
Диапазон размеров: 1/4 - 60 дюймов.
Диапазон давлений: класс 150–2500 фунтов, 10 000 фунтов на квадратный дюйм (продукты API 6A)
Диапазон материалов: литая сталь, кованая сталь, углеродистая сталь, нержавеющая сталь, легированная сталь, бронза, Ti.
Торцевые соединения: фланцевые (FF, RF, RTJ), сварка враструб (SW), резьба (NPT, BSP), сварка встык (BW), ступица
Конструкции кузова: вход с торца, вход сверху (удобно для онлайн-обслуживания)
Типы кузова: разделенный корпус из 2 частей, разделенный корпус из 3 частей
Соединение корпуса и крышки: крышка с болтовым креплением, цельносварная крышка (для работы в опасных условиях требуется более длительный срок службы с меньшей точкой утечки)
Showing 1–12 of 195 results
Почему выбирают наши шаровые краны
Tight Shut Off & Low Emission
Several unique design features, excellent sealing materials and a strong body make the valve an excellent choice for shut-off with Zero Leakage under pipeline pressure.
Super Fire Safe Design
Excellent material of graphite, O-ring, gasket and advanced sealing structure are applied to make the valve with reliable sealing even after the fire.
Anti Blow-out Stem&Anti-Static
An Independent stem and integral shoulder can prevent the stem from blow-out and ensure the safety of the operator. The anti-static device on the ball&stem makes the valve free from sparking.
Fully Customizable Design
Trunnion/Floating, DBB/DIB, Soft/Metal and different materials are available. The valve design is fully customizable to meet customers' project specifications.

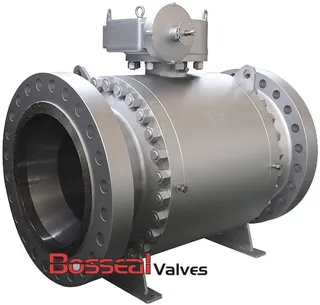

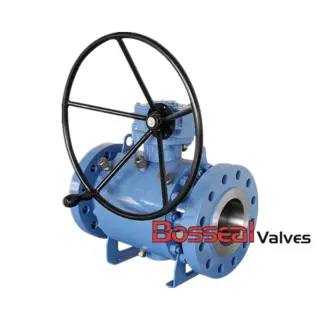

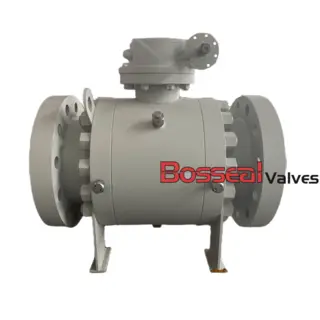

Trunnion Mounted Ball Valve
Design Standards: API 6D, API 608, ISO 17292, BS 5351
Size Range: 1/4 - 60 Inch
Pressure Range: Class 150-2500 LB, 10000 PSI (API 6A Products)
Material Range: Cast Steel, Forged Steel, Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Ti
End Connections: Flanged (FF, RF, RTJ), Socket Weld (SW), Threaded (NPT, BSP), Butt Weld (BW), HUB
Body Structures: End Entry, Top Entry (easy for online maintenance)
Body Types: 2pc split body, 3pcs split body
Body&Bonnet Connection: Bolted Bonnet, Full Welded Bonnet (for Hazardous service need longer working life with less leakage point)
опрос
Size Range: 1/4 - 60 Inch
Pressure Range: Class 150-2500 LB, 10000 PSI (API 6A Products)
Material Range: Cast Steel, Forged Steel, Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Ti
End Connections: Flanged (FF, RF, RTJ), Socket Weld (SW), Threaded (NPT, BSP), Butt Weld (BW), HUB
Body Structures: End Entry, Top Entry (easy for online maintenance)
Body Types: 2pc split body, 3pcs split body
Body&Bonnet Connection: Bolted Bonnet, Full Welded Bonnet (for Hazardous service need longer working life with less leakage point)
Floating Ball Valve
Design Standards: API 6D, API 608, ISO 17292, BS 5351
Size Range: 1/4 - 10 Inch
Pressure Range: Class 150-2500 LB
Material Range: Cast Steel, Forged Steel, Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Ti
End Connections: Flanged (FF, RF, RTJ), Socket Weld (SW), Threaded (NPT, BSP), Butt Weld (BW), HUB
Body Types: 1 pc body, 2pc split body, 3pcs split body
Body&Bonnet Connection: Bolted Bonnet, Threaded Bonnet
опрос
Size Range: 1/4 - 10 Inch
Pressure Range: Class 150-2500 LB
Material Range: Cast Steel, Forged Steel, Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Ti
End Connections: Flanged (FF, RF, RTJ), Socket Weld (SW), Threaded (NPT, BSP), Butt Weld (BW), HUB
Body Types: 1 pc body, 2pc split body, 3pcs split body
Body&Bonnet Connection: Bolted Bonnet, Threaded Bonnet
Modular Double Block and Bleed Ball Valve (Double Ball)
Design Standards: API 6D
Size Range: 2 - 24 Inch
Pressure Range: Class 150-2500 LB, 10000 PSI (API 6A Products)
Material Range: Forged Steel, Carbon Steel, Stainless Steel, Alloy Steel
End Connections:
Flanged (FF, RF, RTJ): ASME B16.5 or ASME B16.47
Butt Weld (BW): ASME B16.25
HUB
Face to Face: Manufacturer Standard
опрос
Size Range: 2 - 24 Inch
Pressure Range: Class 150-2500 LB, 10000 PSI (API 6A Products)
Material Range: Forged Steel, Carbon Steel, Stainless Steel, Alloy Steel
End Connections:
Flanged (FF, RF, RTJ): ASME B16.5 or ASME B16.47
Butt Weld (BW): ASME B16.25
HUB
Face to Face: Manufacturer Standard
Seat Structures
DBB-Double Block and Bleed: Single valve with two seating surfaces that, in the closed position, provides a seal against pressure from both ends of the valve with a means of venting/bleeding the cavity between the seating surfaces. The single piston effect is the standard design for trunnion-mounted ball valves. Pressure from both the upstream and downstream sides pushes the seat rings against the ball. If the force created by the body cavity pressure is greater than the preloaded spring force plus the force created by the pressure from the upstream or downstream side, the seats are pushed away from the ball. Thus, any overpressure in the body cavity is released automatically in the valves' fully open or fully closed position.
DIB-Double Insolation and bleed: Single valve with two seating surfaces, each of which, in the closed position, provides a seal against pressure from a single source, with a means of venting/bleeding the cavity between the seating surfaces. Double piston effect seats are pressure energized in both directions. So the seat rings are always pushed against the ball by the pressure from upstream/downstream or from the cavity. If the upstream seat fails, the downstream seat can still ensure a tight seal.
DIB-Double Insolation and bleed: Single valve with two seating surfaces, each of which, in the closed position, provides a seal against pressure from a single source, with a means of venting/bleeding the cavity between the seating surfaces. Double piston effect seats are pressure energized in both directions. So the seat rings are always pushed against the ball by the pressure from upstream/downstream or from the cavity. If the upstream seat fails, the downstream seat can still ensure a tight seal.
Fire Safe: Internal leakage prevention
Fire Safe Standards: API 607, API 6FA, ISO 10497
Fire-safe design for soft seat ball valves.
Fire-safe design for soft seat ball valves.
Fire Safe: External leakage prevention
Before Fire & After Fire
Metal-to-metal contact
Seat fire-safe packing
With seat springs and O-rings
Metal-to-metal contact
Seat fire-safe packing
With seat springs and O-rings
Anti-blowout Stem& Anti-static Device
The stem is made separately from the ball. The lower end of the stem is designed with an integral shoulder to be blowout-proof.
The electrical continuity of the ball, stem, and body is ensured by the device(spring and ball) to avoid dangerous sparking during the operation.
The electrical continuity of the ball, stem, and body is ensured by the device(spring and ball) to avoid dangerous sparking during the operation.
Emergency Sealant Injection System
In an emergency case, when the sealing materials(soft seat or the stem o-ring) fail to work, the seat and stem leakage can be prevented by injecting sealant into these injection fittings, it will be installed on the stem and seat according to the ball valve sizes.
MOST QUALITY Ball Valves FOR YOU
A ball valve is mainly used in the pipeline for shut-off and control applications. It is one kind of quarter-turn valve, it's open when the ball's hole is in line with the flow inlet and closed when it is 90 degrees rotated by the valve handle, blocking the flow. And can usually be lockable at a different position to control the fluid. It's durable, easy operation/repair and has good sealing performance even after a long disuse. All these advantages make it with extensive industrial use like oil&gas, chemicals, pipelines, water treatment, and mining. The ball valve is versatile as there are many different choices of ball valve types available to select according to the working condition.
If you need any support with our Ball Valves, pls contact us!
опрос
If you need any support with our Ball Valves, pls contact us!
Related Products
Плавающий шаровой кран
Плавающий шаровой кран API 608, 1 дюйм, 800 фунтов, SW + NPT, A105
Шаровой кран с креплением на цапфе
Шаровой кран с цапфой API 6D, 6 дюймов, 2500 фунтов, A105N, RTJ
Типы отверстий:
Полный проход: отверстие шара такого же размера, как и труба
Уменьшенный диаметр: отверстие шара меньшего размера, чем труба.
Типы портов: T-порт, V-порт, 2-сторонний, 3-сторонний T-тип и 3-сторонний L-тип
Типы сидений: Мягкое сиденье, Металлическое сиденье
Типы уплотнения: уплотнительное кольцо, манжетное уплотнение
Lipseal представляет собой пружинное уплотнение, включающее пружину Elgiloy или Inconel и
Куртка из ПТФЭ. Он эффективен в широком спектре приложений, таких как высокая
устойчивость к агрессивным химическим средам, высокосернистому газу, низким температурам или криогенным условиям.
Полный проход: отверстие шара такого же размера, как и труба
Уменьшенный диаметр: отверстие шара меньшего размера, чем труба.
Типы портов: T-порт, V-порт, 2-сторонний, 3-сторонний T-тип и 3-сторонний L-тип
Типы сидений: Мягкое сиденье, Металлическое сиденье
Типы уплотнения: уплотнительное кольцо, манжетное уплотнение
Lipseal представляет собой пружинное уплотнение, включающее пружину Elgiloy или Inconel и
Куртка из ПТФЭ. Он эффективен в широком спектре приложений, таких как высокая
устойчивость к агрессивным химическим средам, высокосернистому газу, низким температурам или криогенным условиям.
 |
End Connections: Flanged (FF, RF, RTJ), Socket Weld (SW), Threaded (NPT, BSP), Butt Weld (BW), HUB Size Range: 1/4”~60” Pressure Range: 150LB~2500LB, 10000PSI (API 6A Products) Material Range: Cast Steel, Forged Steel, Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Ti |
| Mechanical Properties of Soft Seat Materials | Pressure/Temperature Rating of Soft Seat Materials |
 |
 |
