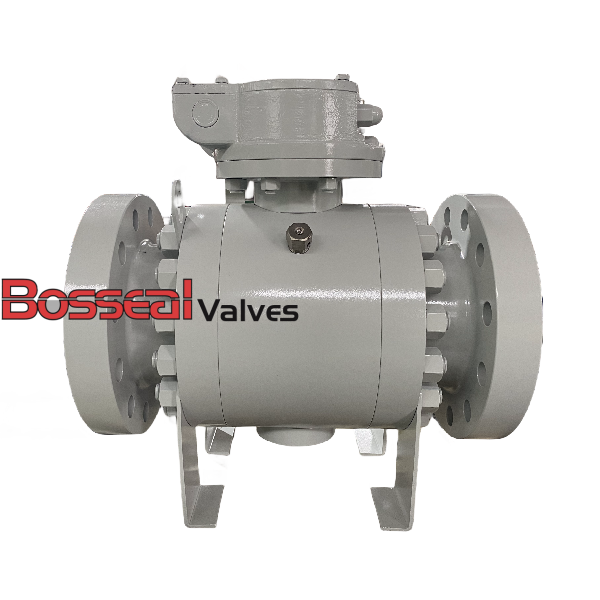

14 Inch Trunnion Ball Valve, API 6D, 300 LB, ASTM A350 LF2

Key Specifications / Features

Model No. : 1811100
Explore our comprehensive range of 14-inch trunnion ball valves, designed to meet industry standards including 300 LB and PN50 ratings, with a DN350 size according to API 6D specifications. Crafted from high-quality materials such as ASTM A350 LF2 and ASTM A105N, these valves feature a 3-piece design with a bolted bonnet for secure operation. Equipped with DEVLON seats and gear operation, they ensure reliable performance in demanding environments. Finished with RF ends, our valves offer seamless integration for your applications.

Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 14 INCH, 300 LB, RF, DEVLON seat, Gear Operation

Valve Description:
1811100 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 14 Inch
Nominal class: 300 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
