Key Specifications / Features
Model No. : 0.75GL8NA10508
Explore our top-quality Forged ASTM A105N Globe Valve from our renowned factory. This valve features a size of 3/4 inches (DN20) and a robust 800 LB pressure rating. Manufactured according to API 602 and ASME B16.34 standards, it ensures exceptional performance and reliability. The valve is designed with NPT threaded ends, making installation a breeze. Equipped with Trim 8 and a convenient handwheel, it offers precise flow control. The adjustable packing gland further enhances its longevity. Trust this premium globe valve for your industrial needs.
Categories
Globe Valves
Tags:
3/4 Inch Globe Valve
, Class 800 LB Globe Valve
, ASTM A105N Globe Valve
.
800 LB Forged Globe Valve, API 602, 3/4 INCH, 800 LB, NPT End, A105 Body, Trim 8, Handwheel
Valve Description:
1852010 API 602 Forged Globe Valve 0.75GL8NA10508
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 3/4 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: NPT Threaded End
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: 1Cr13+STL, No.8
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc(parabola disc available)
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel

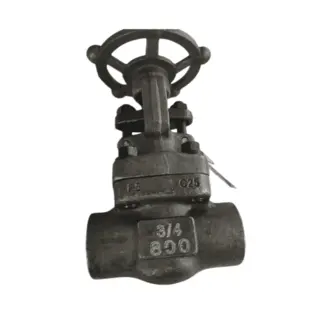

Next: ASTM A182 F5 Forged Globe Valve, 3/4 Inch, 800 LB, API 602

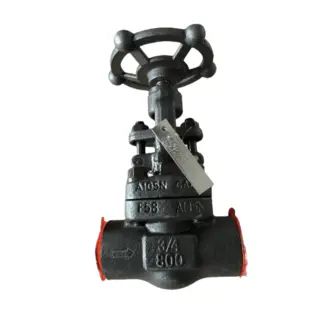

Previous: ASTM A105N Forged Globe Valve, 3/4 Inch, 800 LB, API 602
