Key Specifications / Features
Model No. : 1811096
Experience superior quality and reliability with our 3 PCS Forged Trunnion Ball Valves. Designed for optimal performance, these valves boast a size of 6 inches, pressure rating of 300 LB, and conform to standards such as DN150, PN50, ASTM A350 LF2, API 6D, ASTM A105N, BS 5351. Featuring RPTFE seats and RF Flanged Ends, they ensure efficient sealing and easy installation. Trust in our valves for your industrial needs.
Categories
Trunnion Mounted Ball Valve
Tags:
ASTM A105N Ball Valve
, API 6D Ball Valve
, ASTM A350 LF2 Ball Valve
.
API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 6 INCH, 300 LB, RF, RPTFE seat
Valve Description:
1811096 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 6 Inch
Nominal class: 300 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator

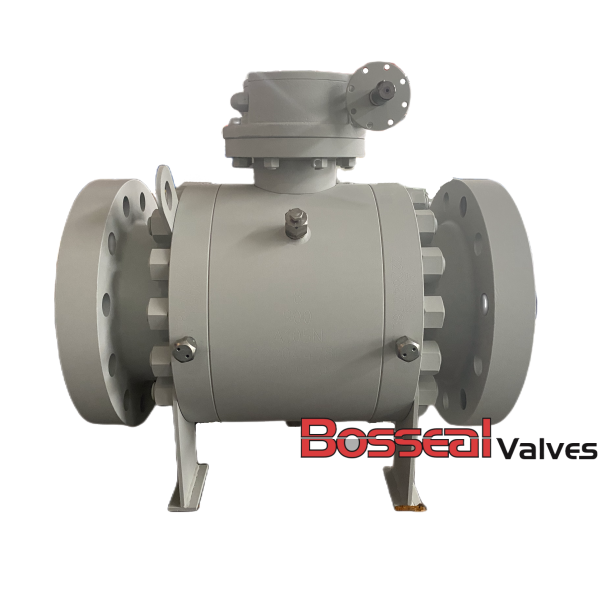

Next: RF Trunnion Ball Valve, 8 Inch, 300 LB, ASTM A105N, A350 LF2

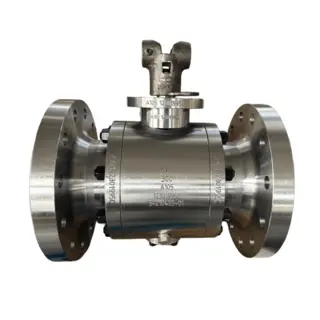

Previous: ASTM A350 LF2 3-Pieces Ball Valve, 4 Inch, 300 LB, BS 5351
