Key Specifications / Features
Model No. : 1811087
Experience precision and reliability with our 32-inch trunnion ball valve mill, designed to meet stringent standards including DN800, CL 150, PN20, API 6D, BS 5351, ASTM A105N, and ASTM A350 LF2. These 3-piece valves feature side entry and DEVLON seats, ensuring durability and performance. Perfect for industrial applications, our valves boast RF design for seamless integration.
Categories
Trunnion Mounted Ball Valve
Tags:
32 Inch Ball Valve
, API 6D Ball Valve
, BS 5351 Ball Valve
.

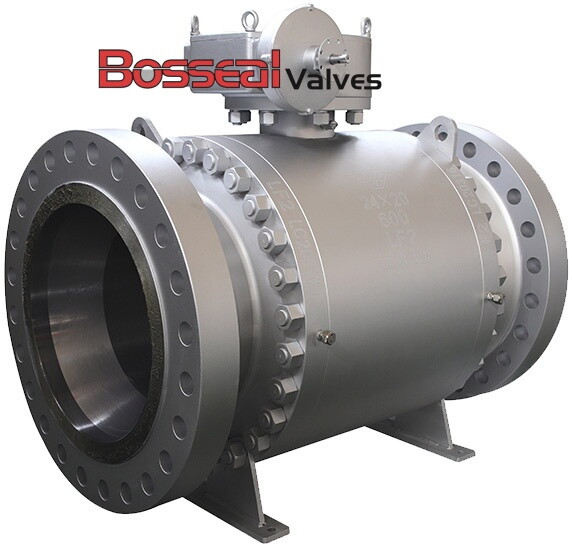

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 32 INCH, 150 LB, RF, DEVLON seat
Valve Description:
1811087 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 32 Inch
Nominal class: 150 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
