Key Specifications / Features
Model No. : 56G1RWCB08

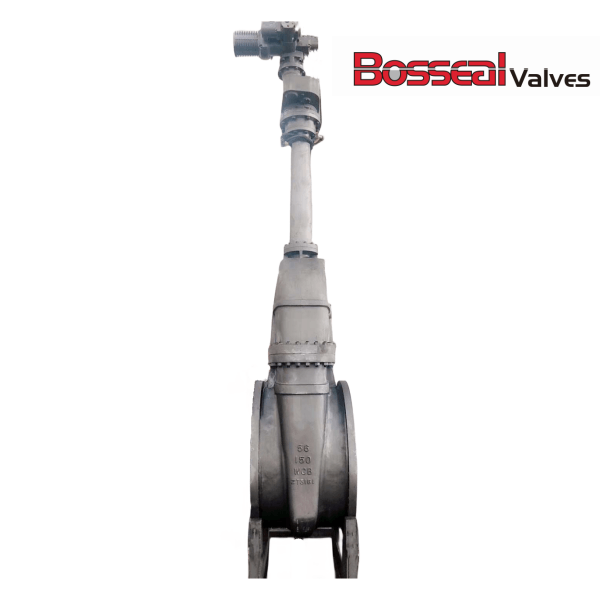

Explore our premium Flanged Gate Valve, crafted with precision: 56 Inch, 150 LB, API 600 compliant, made from ASTM A216 WCB material, featuring Trim 8 design. This motorized valve is NACE certified, designed with an OS & Y configuration, bolted bonnet and equipped with an electric actuator. The valve boasts a flexible wedge for optimal performance and a non-rising handwheel for ease of use.
Categories
Gate Valves
Tags:
ASTM A216 WCB Gate Valve
, Class 150 LB Gate Valve
, API 600 Gate Valve
.
Flanged Gate Valve, API 600, OS & Y, 56 inch, 150 LB, RF, WCB Trim 8, Motorized, NACE
Valve Description:
1821026 Gate Valve 56G1RWCB08
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 56 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Eletric Actuator
Body Material: ASTM A216 WCB
Trim Material: CR13+STL, No.8
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, NACE MR0175
Product Range:
Body material: Carbon Steel, Alloy Steel
Normal diameter: 2 - 56 Inch (DN50 - DN1400)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel, Gear, Motor Actuator
