Key Specifications / Features
As a leading compact ball valve supplier in China, we provide premium valves designed to meet API 6A and API 6D standards for demanding industrial and oilfield applications. Our valves feature strong bodies made from AISI 4130, F60, or F65, ensuring durability and high-pressure performance up to 2000 PSI. The trim is crafted from 4140, F51, or 17-4PH stainless steel, offering long-term reliability in challenging environments. Available in 11-inch sizes with RTJ or butt-weld (BW) end connections, these valves support manual lever, gear, or actuated operation, delivering precise, safe, and efficient flow control for critical systems.
Valve Description:

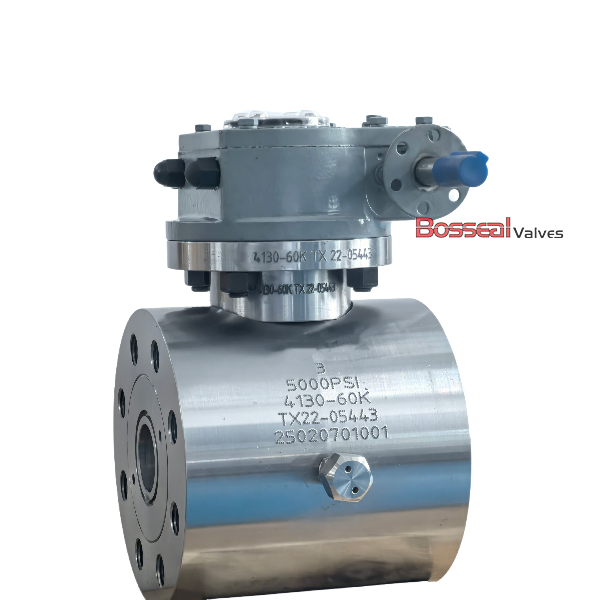

181105017 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Structure: 1pc body
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
