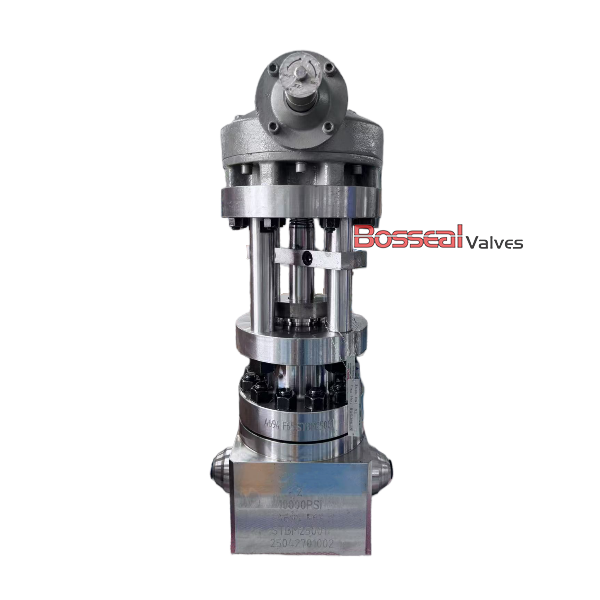

Alloy Steel Globe Valve, 4130/Inconel, 4140 Trim, 7-1/8 Inch

Key Specifications / Features

Model No. : GLV-183103057

As a leading alloy steel globe valve provider in China, we offer high-quality valves engineered to API 6A standards for demanding oil and gas applications. This 7-1/8-inch valve features a durable AISI 4130/Inconel body and precision 4140, F51, and 17-4PH trim, delivering exceptional strength, corrosion resistance, and longevity. Rated for 15,000 PSI, it includes a TCC/STL seat for reliable sealing under high-pressure conditions. The gear-operated mechanism provides smooth and accurate flow control, making it ideal for high-pressure and high-temperature environments. Our alloy steel globe valves ensure safety, durability, and optimal performance in critical industrial operations.

Detail Information

Valve Description:
183103057 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
