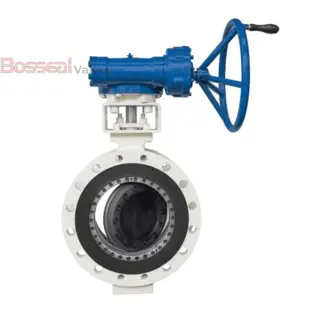

EN 593 High-Performance
Butterfly Valve, API 609, 30 Inch/DN750, 150 LB, Double Eccentric.
A double offset butterfly valve is commonly used in pipelines for both isolation and flow regulation, particularly in applications that require frequent opening and closing.
| 1862174 High-Performance Butterfly Valve |
| Design Standard: | API 609 Category B, EN 593 |
| Body Material: | ASTM B148 C95800, ASTM A351 CF8, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A, ASTM A890 5A, Titanium. |
| Nominal Size: | 30 Inch, DN750 |
| Nominal Class: | Class 150 LB, PN20 |
| Seat Type: | Soft Seat |
| Structure: | Double Offset, Double Eccentric |
| Face to Face: | API 609, EN 593 |
| Test and Inspection: | API 598, API 609 |
| Operation: | Gear |
| Seat: | RPTFE, PPL |
| End Connection: | Wafer |
| Trim Material: | ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
