Key Specifications / Features

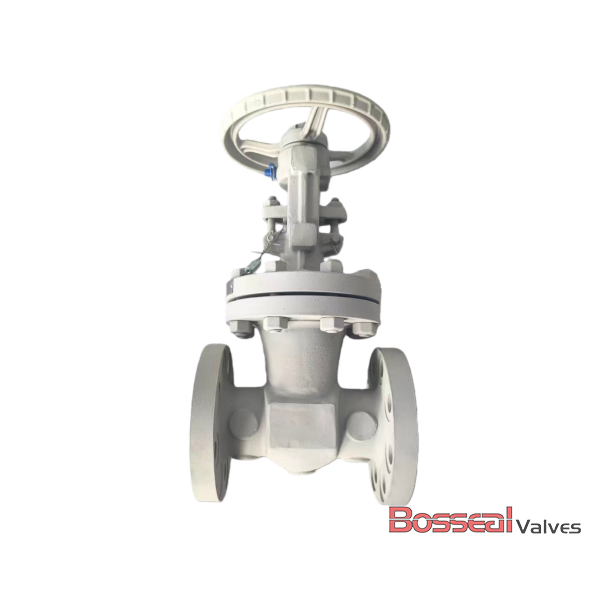

The API 600 Gate Valve with Pressure Seal Bonnet is engineered for high-performance industrial service, manufactured from ASTM B148 C95800 aluminum bronze for excellent corrosion resistance and durability. Designed in 2-1/2 inch (DN65) size and rated Class 2500 LB, it ensures reliable operation under high-pressure conditions. Featuring RTJ flanged ends, it provides superior sealing performance for critical pipelines. As a leading Aluminum Bronze Gate Valves Supplier in China, we deliver precision-engineered valves suitable for demanding applications in oil, gas, and power industries.
Valve Description:
1821265 Cast Steel Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Sizes: 2-1/2 Inch, DN65
Pressure Rating: Class 2500 LB
Bore Type: Standard Bore(API 600)
End Connection: RTJ Flanged
Operation: Handwheel/Gear
Face to face: ASME B16.10
Test and inspection: API 598
Body Material: ASTM B148 C95800, ASTM A216 WCC, ASTM A217 WC6, ASTM A995 6A, ASTM A217 WC9, ASTM A351 CF8, ASTM A217 C12A, ASTM A351 CF3M, ASTM A351 CF3, ASTM A351 CF8M, ASTM A352 LCB, ASTM A352 LCC, ASTM A217 C5, ASTM A995 4A, ASTM A995 5A, ASTM A216 WCB
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Al-bronze
Normal diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure range: 150 LB - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
