Key Specifications / Features

Model No. : 6TB1L5A

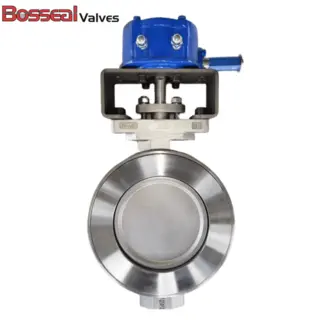

Find high-quality API 609 Cat B butterfly valves from our trusted supplier. These valves are 6 inches in size, designed to withstand pressure up to 150 LB, and crafted from ASTM A995 5A super duplex material for durability. Featuring bi-directional sealing and a double offset design, they ensure reliable performance. Equipped with LUG-RF connection and gear operation for ease of use.


Detail Information

Double Offset Butterfly Valve, High Performance, API 609, 6 inch, 150 LB, LUG, Super Duplex A995 5A body & Disc, RPTFE seat, Gear Operation, Bi-directing Sealing, End Service

Valve Description:
1862021 Double Offset Butterfly Valve 6TB1L5A
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 6 Inch
Nominal class: 150 LB
End Connection: LUG-RF
Operation: Gear Operation
Body Material: ASTM A995 5A
Trim Material: A995 5A disc, RPTFE+SS Fire Safe seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close(million cycling), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, End service

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
