Key Specifications / Features
As a leading compact ball valve supplier in China, we provide high-quality valves engineered for demanding oil, gas, and industrial applications. Our compact ball valves feature a one-piece ASTM A694 F60/F65 body, ensuring strength and durability under high-pressure conditions. Equipped with precision trims in 4140, F51, 17-4PH, or Inconel, these valves deliver excellent corrosion resistance and long-lasting performance. Designed to meet API 6A standards, they are available in 9-inch sizes with BW or RTJ ends, and can be operated via lever, gear, or actuator. As a leading China compact ball valve supplier, we deliver reliable, top-performance solutions.
Valve Description:

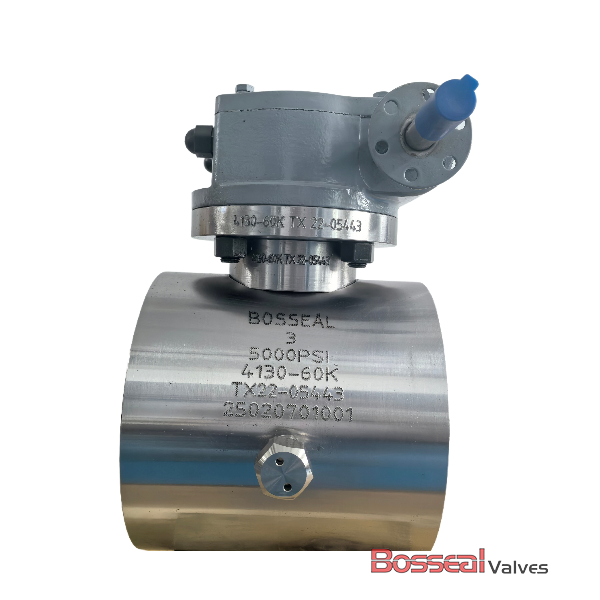

181105037 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
