Key Specifications / Features
We are a leading compact ball valve supplier in China, offering high-quality valves designed for demanding applications. Our valves meet API 6A and API 6D standards and feature robust AISI 4130 or F65 bodies with sizes up to 4-1/4 inches and pressure ratings of 2500 PSI. Precision-engineered trims, including 4140, F51, and 17-4PH, ensure excellent durability and performance. Available with RTJ or butt-weld ends, these valves can be configured as soft-seated for tight shutoff or metal-seated for high-temperature and abrasive media. Ideal for oil, gas, and industrial piping systems, our valves deliver reliability, longevity, and superior flow control.
Valve Description:

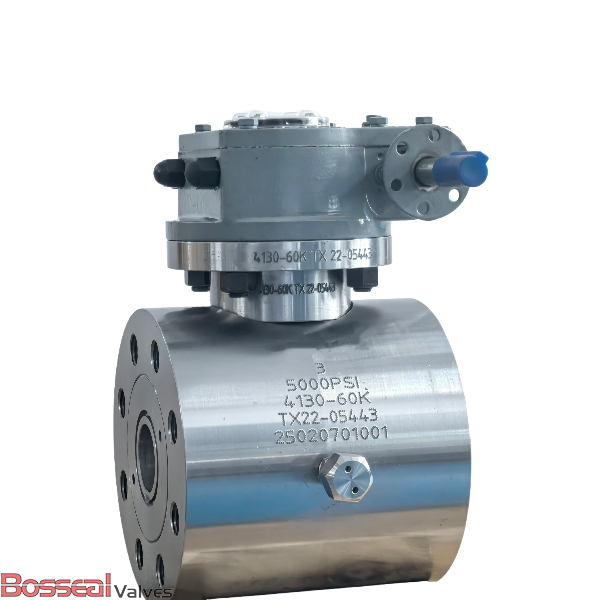

181105071 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
