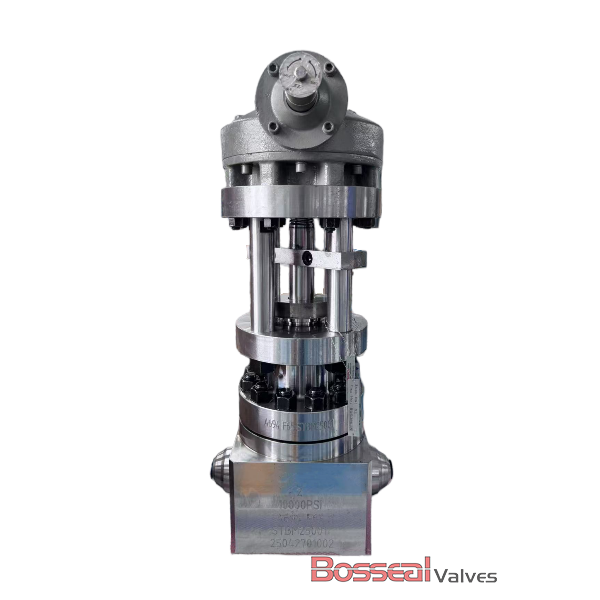

API 6A Globe Valve, 4130/A694 F60/F65, 1-13/16 IN, 5000 PSI

Key Specifications / Features

Model No. : GLV-183103001

As a leading globe valve manufacturer in China, we supply high-performance valves designed to meet API 6A standards for demanding industrial applications. Our globe valves are available in AISI 4130 and ASTM A694 F60/F65 materials, with a 1-13/16 inch size and rated for 5000 PSI service. They are offered with RTJ or BW end connections and incorporate premium trim options including 4140, F51 duplex stainless steel, 17-4PH, and Inconel for excellent wear and corrosion resistance. Equipped with gear operation, these valves ensure reliable flow control in critical operations.


Detail Information

Valve Description:
183103001 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
