Key Specifications / Features
As a trusted trunnion ball valve supplier from China, we deliver high-quality valves engineered to API 6A standards. Manufactured with robust AISI 4130, ASTM A694 F60, or F65 bodies, they ensure excellent strength and durability under high-pressure conditions. Featuring F51 or 17-4PH trims and advanced PEEK, TCC, or STL seats, these valves provide reliable sealing and corrosion resistance. With bolted bonnets, 2- or 3-piece bolted body designs, and RTJ ends, they are built for efficiency and long service life, making them ideal for demanding oil and gas applications worldwide.
Valve Description:

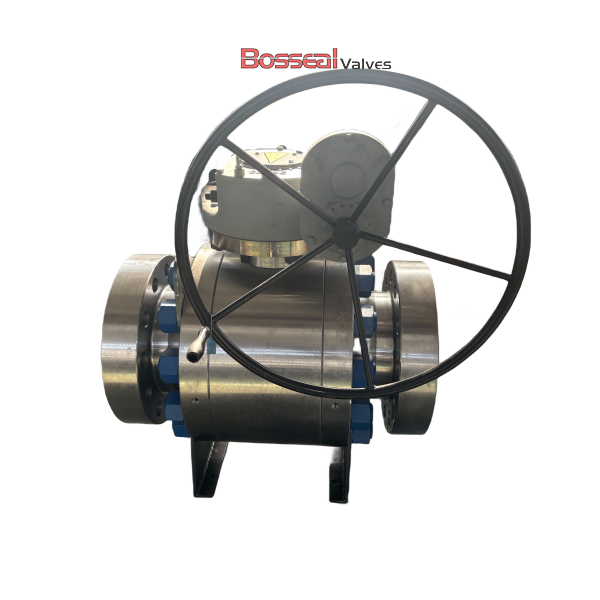

181104096 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Test and Inspection: API 6A
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2
Product Range:
Body Material: Alloy Steel, Carbon Steel, Stainless Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: RF, RTJ, BW, HUB
Design Features:
Bolted body with 2-piece and 3-piece construction
Double block and bleed capability
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Available with metal-to-metal or soft seat options
Anti-blowout stem design for enhanced safety
Integrated anti-static devices
Ensures bubble-tight shutoff for reliable sealing
