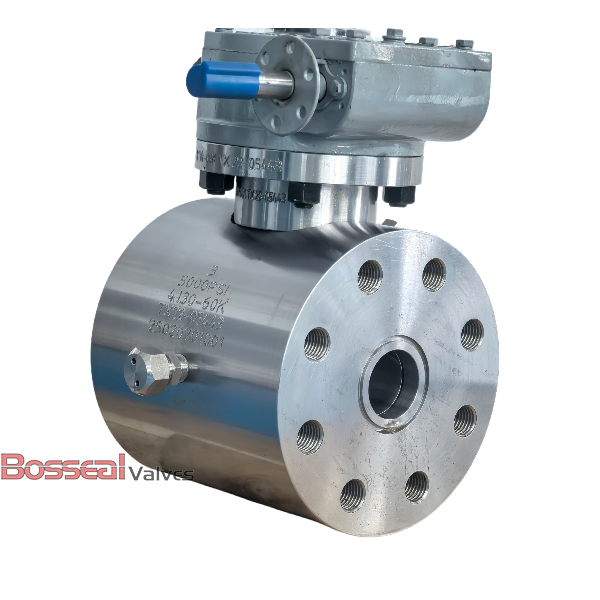

API 6D Ball Valves, AISI 4130, 6-3/8 IN, Inconel Trim, BW

Key Specifications / Features

Model No. : BV-181105102

As a leading API 6D ball valve supplier in China, we provide high-quality valves engineered for demanding oil and gas, petrochemical, and industrial applications. Our valves feature robust AISI 4130 or ASTM A694 F60/F65 bodies and precision F51, 17-4PH, or Inconel trim, offering exceptional strength, corrosion resistance, and long-term reliability. With a 6-3/8 inch size and a 10,000 PSI pressure rating, these valves meet stringent industry standards. Equipped with RTJ or BW ends and an ISO 5211 mounting pad, they allow versatile actuator installation and smooth operation. Ideal for pipelines and high-pressure systems, our valves ensure safety, durability, and superior flow control.


Detail Information

Valve Description:
181105102 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
