Key Specifications / Features

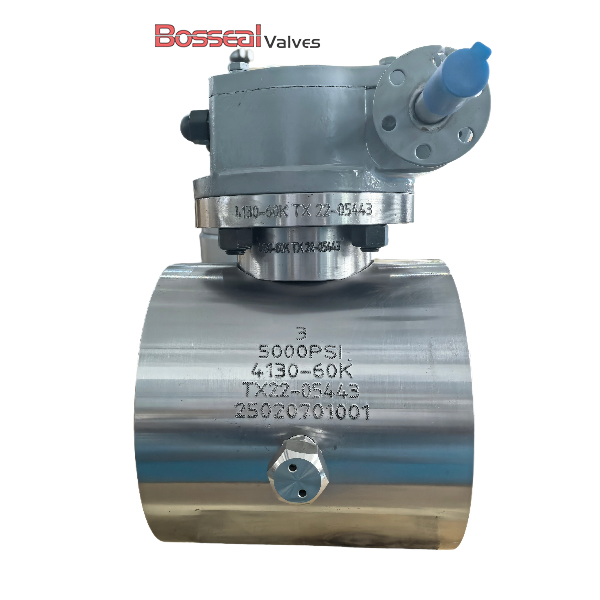

As a leading compact ball valve manufacturer in China, we design and produce valves that comply with API 6D and API 6A standards for reliable performance in demanding applications. Our compact ball valves feature a soft or metal seat to suit various service conditions, with body materials including AISI 4130, ASTM A694 F60, and F65 for superior strength and corrosion resistance. The trim components are made from 17-4PH or Inconel for enhanced durability under high pressure and temperature. Available in 6-1/8 inch size and rated up to 2000 PSI, these valves ensure safe, efficient flow control.
Valve Description:
181105011 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Face to Face: ASME B16.10/MFG'S
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy to repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
