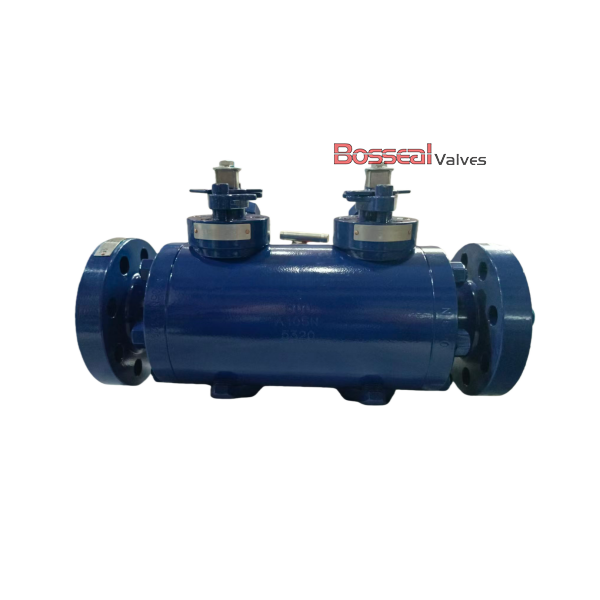

API 6D DBB Ball Valves, F304, 3 IN, 900 LB, Trunnion-Mounted

Name: API 6D DBB Ball Valves, F304, 3 IN, 900 LB, Trunnion-Mounted
SKU: 181302066
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : 181302066

Engineered to API 6D and BS 5351 standards, this high-integrity DBB trunnion-mounted ball valve features a durable ASTM A182 F304 stainless steel body paired with A105 trim enhanced with ENP coating for improved wear and corrosion resistance. Sized at 3 inch (DN80 / 80 mm) and rated Class 900 LB, the valve is built for high-pressure and critical service environments. Its full welded construction enhances structural strength and eliminates potential leak paths, while RTJ flanged ends provide secure, metal-to-metal sealing under severe conditions. As a leading DBB Trunnion-Mounted Ball Valves Supplier from China, we provide reliable, precision flow control solutions for global industries.

Request a quote

Tags:

API 6D Ball Valve

DBB Ball Valve

ASTM A182 F304 Ball Valve

Detail Information

Valve Description:
181302066 DBB Trunnion Mounted Ball Valve, Double Block & Bleed Ball Valve
Design Standard: API 6D, BS 5351
Nominal Size: 3 Inch, DN80, 80 mm
Nominal Class: Class 900 LB, PN150
Bore Type: Full Bore or Reduced Bore
Face to Face: ASME B16.10
Operation: Gear
Body Material: ASTM A182 F304, ASTM A350 LF2, ASTM A105N, ASTM A182 F51, ASTM A182 F55, ASTM A182 F316, Inconel 625, ASTM A182 F53
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
End Connection: RTJ Flanged
Structure: Full Welded
Test and Inspection: API 598, API 6D
Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
