Key Specifications / Features
Model No. : 1811098
Get top-quality API 6D trunnion-mounted ball valves from a reliable supplier. Our valves are available in 10-inch sizes, suitable for 300 LB, DN250, and PN50 applications. Featuring a bolted bonnet design, 3-piece construction, and compliance with BS 5351 standards, our valves are crafted from ASTM A105N and ASTM A350 LF2 materials. With resilient RPTFE seats and RF configuration, ensure superior performance and reliability in your operations.
Categories
Trunnion Mounted Ball Valve
Tags:
API 6D Ball Valve
, 10 Inch Ball Valve
, Class 300 LB Ball Valve
.

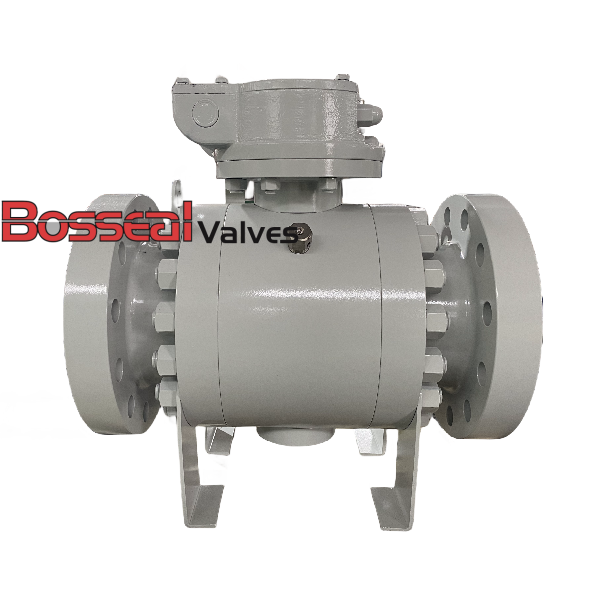

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 10 INCH, 300 LB, RF, RPTFE seat
Valve Description:
1811098 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 10 Inch
Nominal class: 300 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
