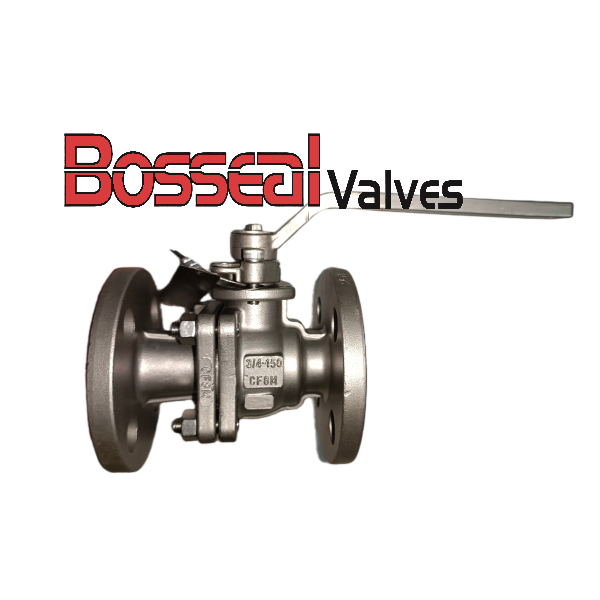

ASME B16.34 Flanged Ball Valve, A351 CF8M, 3/4 IN, CL150

Name: ASME B16.34 Flanged Ball Valve, A351 CF8M, 3/4 IN, CL150
SKU: 181203004
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Home/Products/Ball Valves/Floating Ball Valve/ASME B16.34 Flanged Ball Valve, A351 CF8M, 3/4 IN, CL150

Key Specifications / Features

Model No. : 181203004

This manual flanged floating ball valve is sized 3/4 inch with a Class 150 pressure rating. Its body is cast from CF8M stainless steel, built to ASME B16.34, with flanged ends complying with ASME B16.5. A stainless steel lever handle enables simple manual opening and closing. The full-port ball minimizes flow resistance and achieves tight bi-directional shutoff. CF8M material provides strong resistance to chemical corrosion. Widely used in chemical, water treatment, and marine piping for on-off control of corrosive liquids and gases.

Request a quote

Tags:

ASTM A351 CF8M Ball Valve

3/4 Inch Ball Valve

Class 150 LB Ball Valve

Detail Information

Valve Type: Manual Flanged Floating Ball Valve
Size: 3/4 Inch, DN20
Pressure Class: 150 LB
Body Material: ASTM A351 CF8M
End Type: Flanged
Operation: Manual lever handle
Design Code: ASME B16.34
Flange Standard: ASME B16.5
Face-to-Face Standard: ASME B16.10

Product Description

This 3/4 inch Class150 flanged floating ball valve is cast from CF8M stainless steel and manufactured to ASME B16.34. Flanged ends follow the ASME B16.5 standard. Equipped with a stainless steel lever handle for simple manual on-off operation. Full port ball structure reduces flow resistance and delivers tight shut-off. CF8M material offers excellent corrosion resistance for corrosive liquid and gas media.

Typical Application

Designed for chemical processing, water treatment, marine, and general industrial piping. Used for flow isolation and on-off control of corrosive fluids, suitable for moderate-pressure pipelines requiring reliable sealing and easy manual operation.
