ASME B16.34 Globe Valve, PSB, ASTM A105N, 1 Inch, 4500 LB

Key Specifications / Features
Model No. : 1GLP45SA10505

This is a 1-inch ASME B16.34 designed globe valve with a pressure seal bonnet and a forged A105 body. The valve has a trim 5 and is operated manually with a handwheel. It is suitable for high-pressure applications with a maximum working pressure of 4500 LB and is designed for socket weld connections.

Categories Globe Valves

Tags: ASME B16.34 Globe Valve , ASTM A105N Globe Valve , PSB Globe Valve .

Detail Information

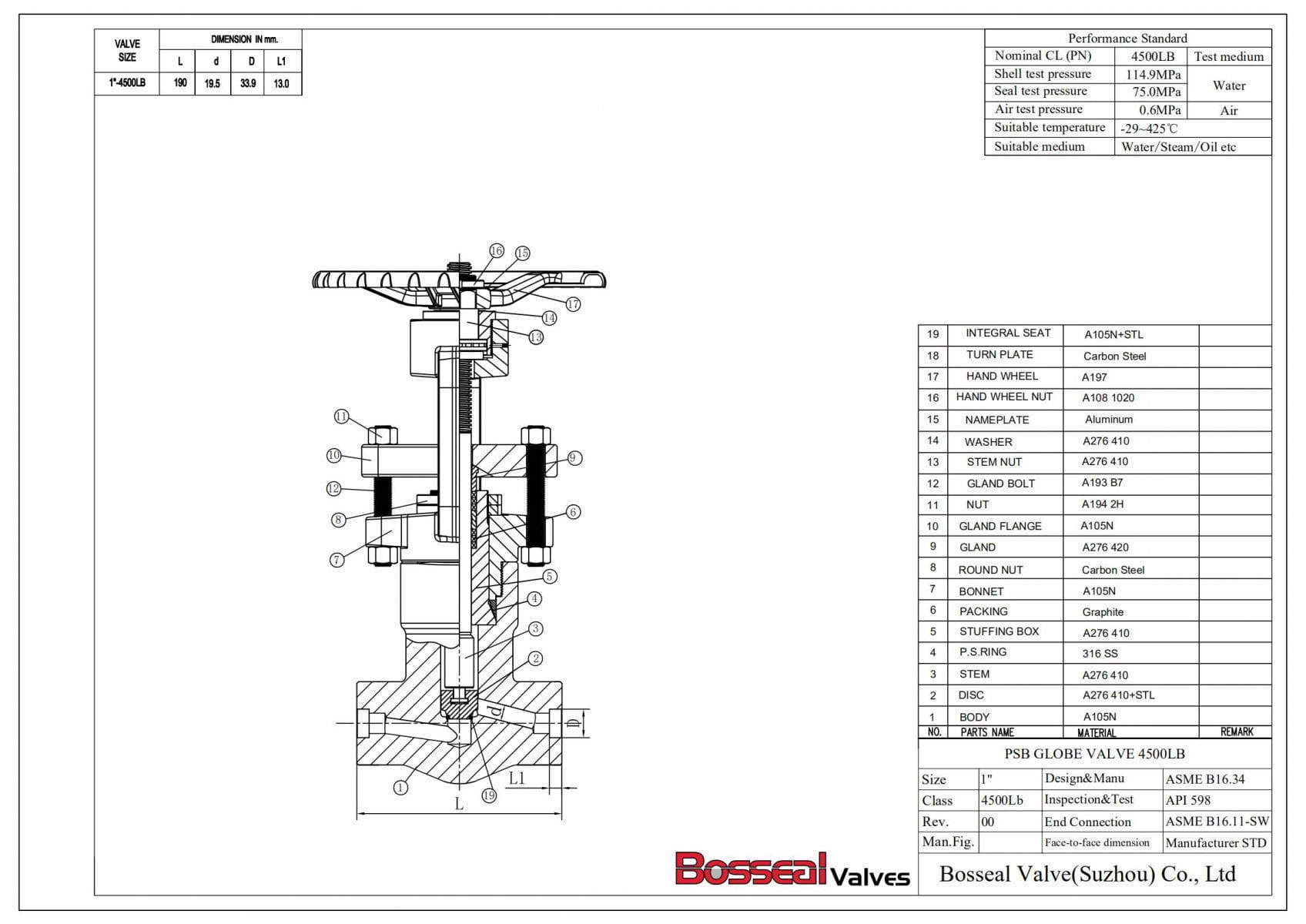

4500 LB Forged Globe Valve, Pressure Seal Bonnet, ASME B16.34 Design, 1 INCH, SW, A105 Body, Trim 5, Handwheel

Valve Description:
1852003 API 602 Forged Globe Valve 1GLP45SA10505
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS & Y, T Pattern
Nominal size: 1 Inch
Nominal class: 4500 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: 1Cr13+STL, No.5
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc (parabola disc available), High-Pressure Compact design

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 2500-4500 LB
End connection: SW, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel

4500 LB Forged Globe Valve
