Key Specifications / Features
Model No. : 1B1RA105N

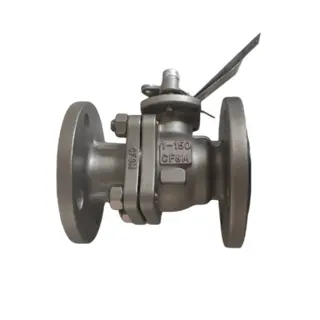

This is a 1-inch Floating Type Ball Valve made with high-quality materials like ASTM A105N. It's designed to meet Class 150 LB and PN20 standards, conforming to API 608, API 6D, and ISO 17292 specifications. This two-piece valve features a side entry design with a bolted bonnet and RF (Raised Face) end, ensuring reliable performance in various applications.
Categories
Floating Ball Valve
Tags:
1 Inch Ball Valve
, Class 150 LB Ball Valve
, API 608 Ball Valve
.
Floating Ball Valve, API 608, DN25, 150 LB, RF, A105N Body, F316 Trim, Soft Seat, ISO 5211 Mounting pad, Lever Operation
Valve Description:
1812024 Floating Ball Valve 1B1RA105N
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1 Inch, DN25
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Operation
Body Material: ASTM A105N
Trim Material: ASTM A182 F316, RPTFE/TFM 1600
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Stainless Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 300 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
