Key Specifications / Features

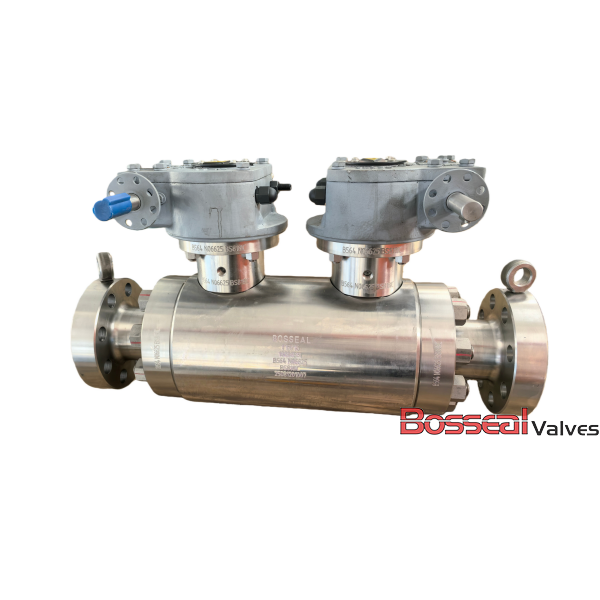

Built for high-pressure and large-diameter pipeline service, this trunnion-mounted ball valve is designed in accordance with API 6D and BS 5351 standards, ensuring safe and reliable operation in demanding industrial environments. The valve features a forged ASTM A182 F304 stainless steel body and trim, providing excellent corrosion resistance and long service life in aggressive media. With an extra-large 40-inch size, Class 600 LB / PN100 pressure rating, and RF flanged ends, it supports secure, leak-tight installation. The full-welded construction enhances structural strength and sealing integrity, while the trunnion design reduces operating torque and improves stability. As a leading Double Ball Valve Factory in China, we supply high-performance, precision-engineered flow control solutions.
Valve Description:
181302061 DBB Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Body Material: ASTM A182 F304, ASTM A105N, ASTM A182 F51, ASTM A182 F55, ASTM A182 F316, ASTM A350 LF2, Inconel 625, ASTM A182 F53
Structure: Full Welded
Sizes: 40 Inches
Nominal Class: Class 600 LB, PN100
Face to Face: ASME B16.10
Bore Type: Full Bore or Reduced Bore
Operation: Gear
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Test and Inspection: API 598, API 6D
End Connection: RF Flanged
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
