ASTM A182 F304 Gate Valve, 3/4 Inch, 800 LB, API 602

Detail Information
Stainless Steel F304 Forged Gate Valve, API 602, 3/4 Inch INCH, 800 LB, SW, A182 F304 Body, Trim 20, Handwheel

Valve Description:
1851006 API 602 Forged Gate Valve 0.75G8SF30420
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 3/4 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A182 F304
Trim Material: SS304+STL, No.28
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel

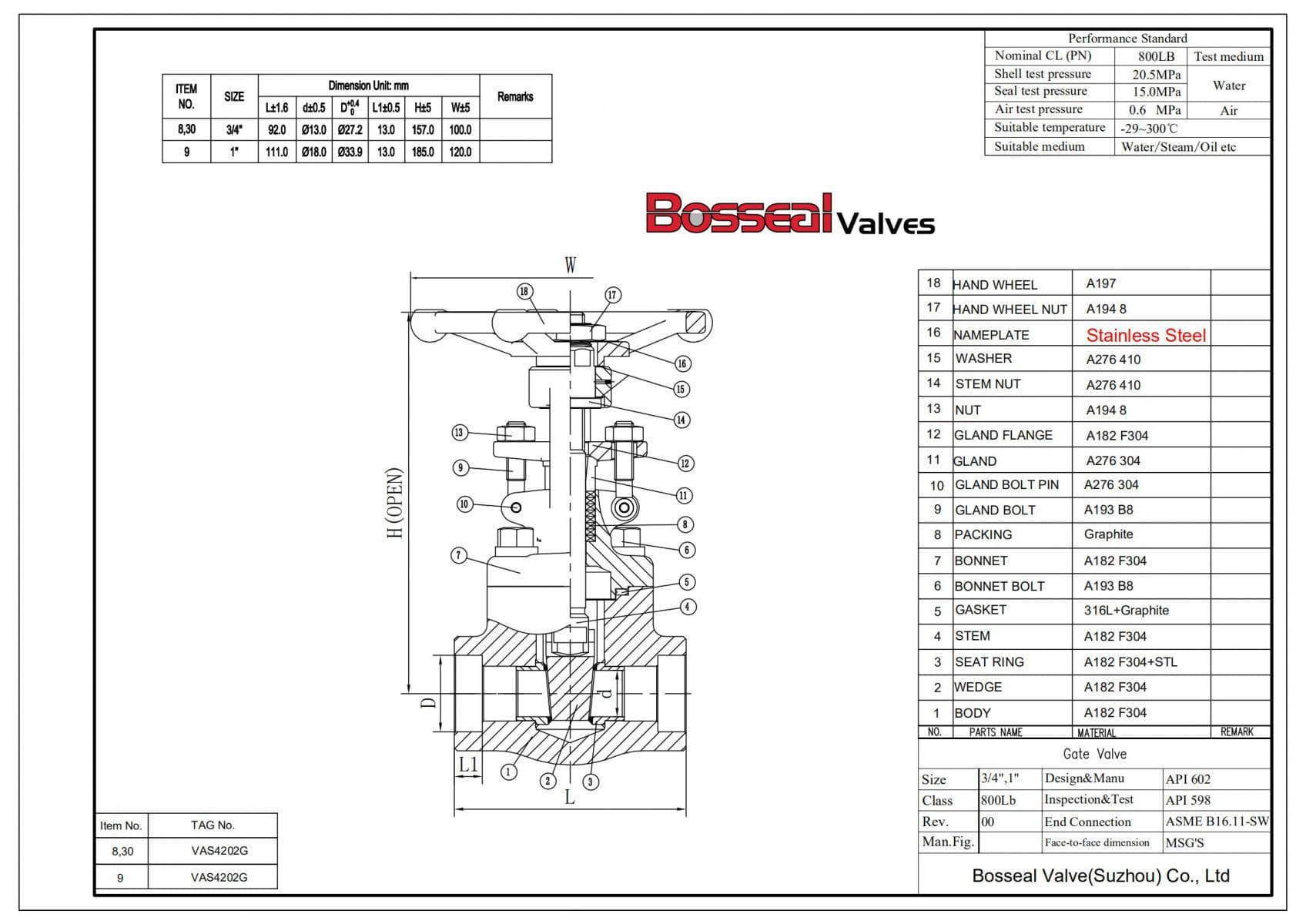

F304 Forged Gate Valve Tech Drawing
