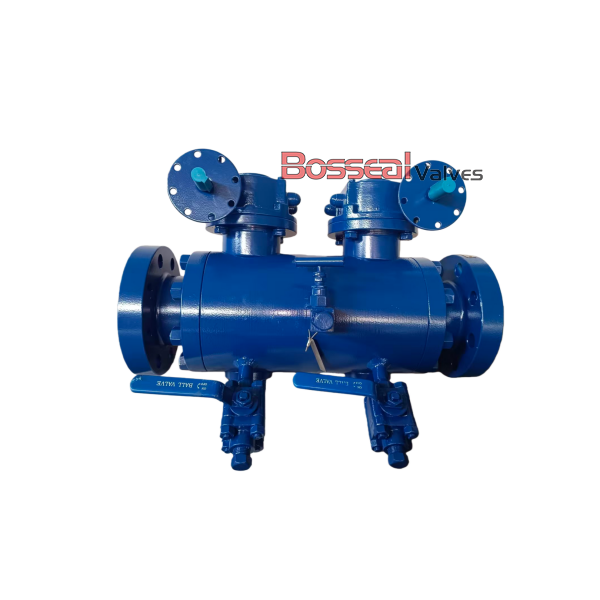

ASTM A182 F316 DBB Ball Valves, 42 IN, 1500 LB, RTJ Flanged

Key Specifications / Features

Model No. : 181302104

This Trunnion Mounted Ball Valve is designed to meet API 6D standards, providing reliable performance in demanding industrial applications. Built with a robust ASTM A182 F316 body and trim, it offers exceptional corrosion resistance and durability for high-pressure systems. With a 42-inch (DN1050) size, Class 1500 LB rating, and RTJ flanged ends, this valve ensures secure sealing and safe operation under extreme conditions. The gear-operated mechanism allows precise control and smooth operation for large-diameter pipelines. As a leading DBB Ball Valve supplier from China, we deliver high-quality valves engineered for reliability, efficiency, and long service life.


Detail Information

Valve Description:
181302104 DBB Ball Valves, Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 42 Inch, DN1050
Pressure: Class 1500 LB, PN250
Body Material: ASTM A182 F316, ASTM A350 LF2, Inconel 625, ASTM A182 F51, ASTM A105N, ASTM A182 F55, ASTM A182 F304, ASTM A182 F53
Bore Type: Full Bore or Reduced Bore
Trim Material: ASTM A182 F304, ASTM A182 F6A, ASTM A182 F316, F51, F53, F55, A105+ENP, LF2+ENP
Structure: Full Welded
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
End Connection: RTJ Flanged
Operation: Gear
Seat Insert: RPTFE, DEVLON, NYLON, PEEK

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
