ASTM A182 F316 Y Type Globe Valve, 1-1/2 IN, 800 LB, API 602

Key Specifications / Features

Model No. : 1852038
As a leading API 602 Y Type globe valve fabricator in China, we offer high-quality valves crafted from ASTM A182 F316 material. Our 1-1/2 inch, Class 800 LB globe valves are designed to meet ASME B16.34 standards and feature a bonnetless construction for a streamlined profile. The reduced bore design enhances flow control, while the socket weld ends ensure a secure, leak-proof connection. Engineered for durability and efficiency, our valves are ideal for demanding applications requiring reliable performance. Choose us for robust, precision-engineered valves tailored to your industrial needs.

Detail Information

API 602 Y Type Globe Valve, 1-1/2 Inch, CL 800 LB, ASTM A182 F316 Body, Bonnetless, SW Ends.

Valve Description: 1852038 Globe Valve
Design Standard: API 602, ASME B16.34
Structure: Bonnetless, Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet
Nominal Size: 1-1/2 Inch
Nominal Class: Class 800 LB
Bore Type: Reduced
Face to Face: MFG'S
Operation: Handwheel
Body Material: ASTM A182 F316, ASTM A182 F11, ASTM A105N, ASTM A182 F22, ASTM A182 F91
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)


Key Features:
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service


Product Portfolio:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15-DN50)
Pressure Range: Class 800 LB - 4500 LB
Working Temperature: -29°C to +525°C
Operation: Manual or Actuated
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)

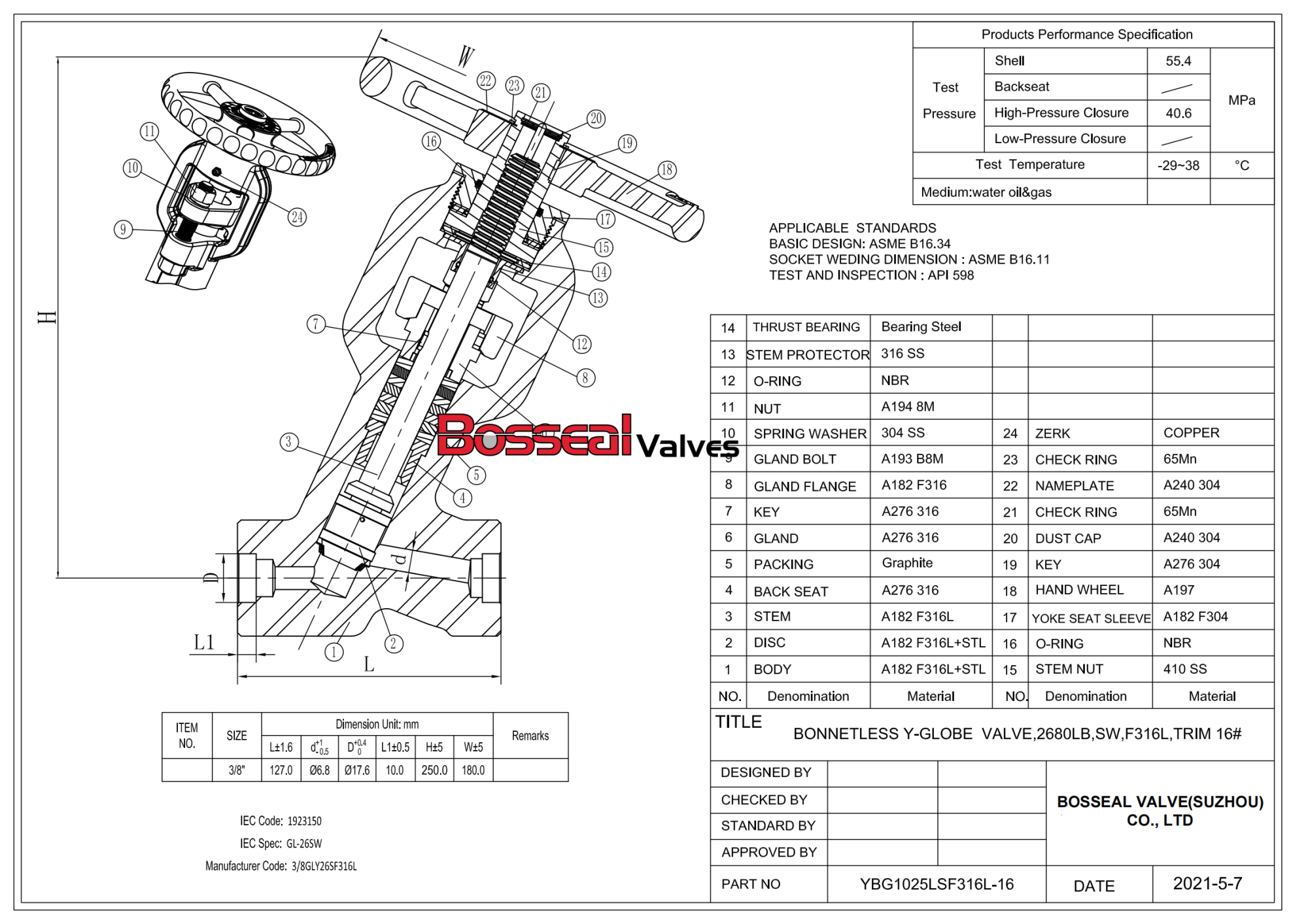

Drawing for Globe Valve
