ASTM A216 WCB Flanged Butterfly Valve, API 609, 40 IN, 300 LB

Home/Products/Butterfly Valves/Double Offset Butterfly Valve/ASTM A216 WCB Flanged Butterfly Valve, API 609, 40 IN, 300 LB
ASTM A216 WCB Flanged Butterfly Valve, API 609, 40 IN, 300 LB

Key Specifications / Features

Model No. : 1862156
We supply high-quality carbon steel butterfly valves made from ASTM A216 WCB material, designed for durability and performance. Our 40-inch double offset valves meet EN 593 and API 609 standards, ensuring reliable operation in demanding environments. Rated at 300 LB, these valves feature a 17-4PH stem for enhanced strength and a soft RPTFE seat for excellent sealing capability. Built for high performance, our butterfly valves are engineered to provide long-lasting service. As a leading supplier from China, we are committed to delivering exceptional valve solutions to meet your needs.

Detail Information

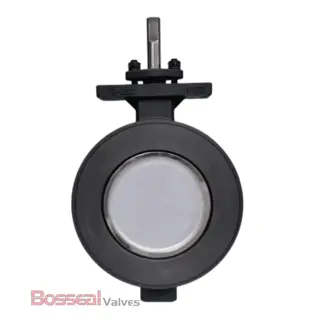

API 609 High-Performance Butterfly Valve, Double Offset, 40 Inch, 300 LB, RPTFE Seat.

Valve Description

1862156 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 40 Inch
Nominal Class: Class 300 LB
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, Titanium.
Seat: RPTFE, PPL
End Connection: Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium.
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150 LB - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
