Key Specifications / Features
Model No. : 16TB1WWCB
Explore high-quality wafer butterfly valves from a trusted manufacturer. Our valves feature an ASTM A216 WCB body, an ASTM A351 CF8M disc, and an RPTFE seat. Designed with API 609 B standards, double offset, and bi-directional sealing, these 16-inch valves are suitable for 150 LB, DN400, and PN20 applications. Choose reliability with RF design for optimal performance.
Categories
Double Offset Butterfly Valve
Tags:
ASTM A216 WCB Butterfly Valve
, Wafer Butterfly Valve
, 16 Inch Butterfly Valve
.
Double Offset Butterfly Valve, High Performance, API 609 B, 16 inch, 150 LB, Wafer, WCB body & CF8M Disc, RPTFE seat, Gear Operation, Bi-direction Sealing
Valve Description:

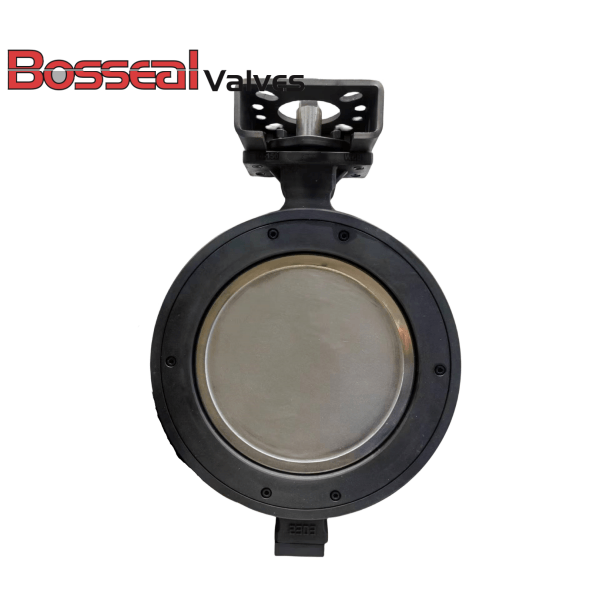

1862027 Double Offset Butterfly Valve 16TB1WWCB
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 16 Inch
Nominal class: 150 LB
End Connection: Wafer-RF
Operation: Gear Operation
Body Material: ASTM A216 WCB
Trim Material: ASTM A351 CF8M disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close (million cycling), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, End service
Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
