ASTM A216 WCB Wafer Type Butterfly Valve, 2 IN, CL300

Home/Products/Butterfly Valves/Double Offset Butterfly Valve/ASTM A216 WCB Wafer Type Butterfly Valve, 2 IN, CL300
ASTM A216 WCB Wafer Type Butterfly Valve, 2 IN, CL300

Key Specifications / Features

Model No. : 1862180

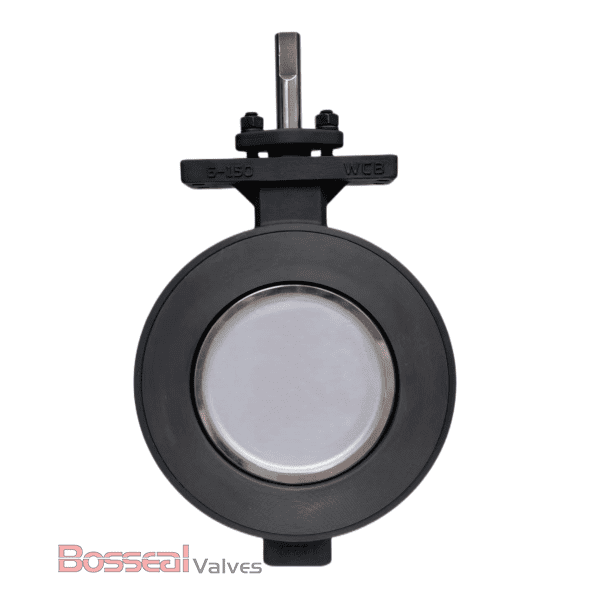

As a leading supplier of double offset wafer butterfly valves, we offer high-quality solutions designed to meet API 609 Category B standards. Our 2-inch (DN50), Class 300 LB valves are crafted from ASTM A216 WCB carbon steel for durability and strength. Featuring a double eccentric design and a 17-4PH stem, these valves ensure reliable performance with excellent corrosion resistance. The soft seat provides superior sealing, making them ideal for a range of industrial applications. Our butterfly valves deliver precision, long-lasting durability, and smooth operation in demanding environments.

Detail Information

API 609 Category B Butterfly Valve, Wafer End, 2 Inch/DN50, 300 LB, Lever Operation.

Valve Description

1862180 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Nominal Size: 2 Inch, DN50
Nominal Class: Class 300 LB, PN50
Structure: Double Offset, Double Eccentric
Body Material: ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Seat: RPTFE, PPL
End Connection: Wafer

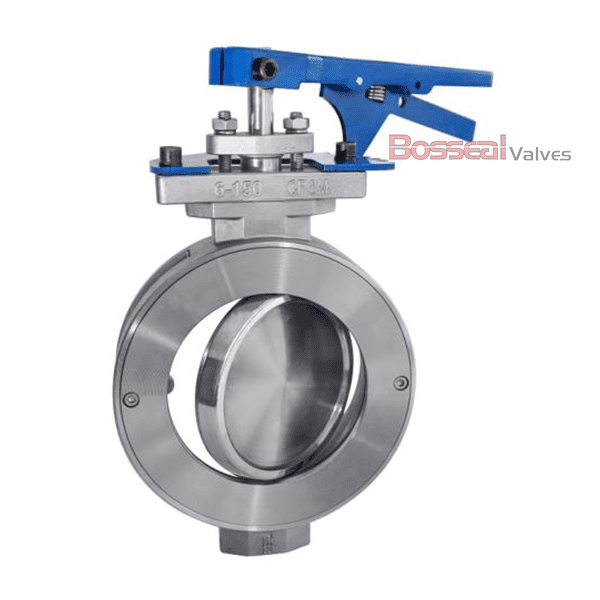

Operation: Lever
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2  - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150  - 300 LB

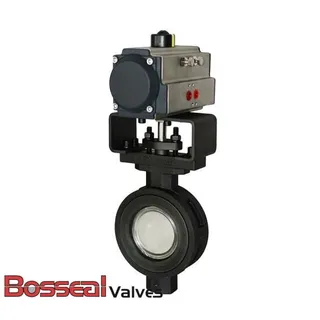

Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
