Key Specifications / Features
Model No. : 20G6RWC608

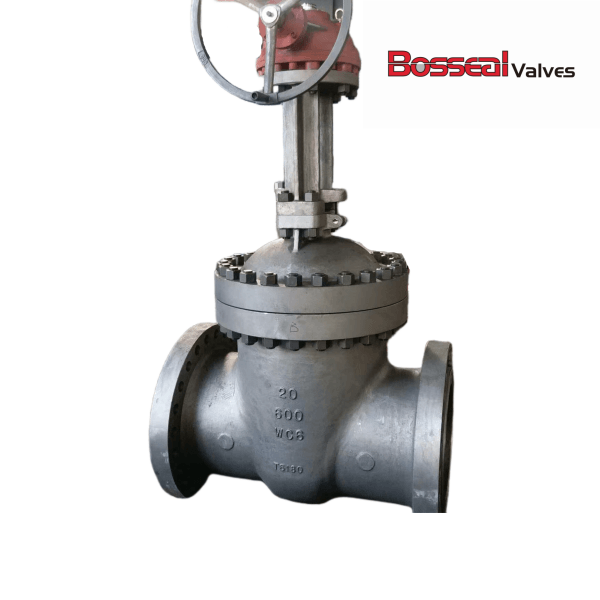

Looking for a reliable RF Flanged Gate Valve Provider? Our API 600 compliant valve features a 20-inch size, 600 LB rating, ASTM A217 WC6 construction with SS 410+STL material, No.8 Trim, NACE compliance, OS & Y design, Flexible Wedge, Bolted Bonnet, Raised Face, and Handwheel operation.
Categories
Gate Valves
Tags:
API 600 Gate Valve
, 20 Inch Gate Valve
, Class 600 LB Gate Valve
.
Flanged Gate Valve, API 600, OS & Y, 20 inch, 600 LB, RF, WC6 Trim 8, Handwheel, NACE
Valve Description:
1821025 Gate Valve 20G6RWC608
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 20 Inch
Nominal class: 600 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM A217 WC6
Trim Material: 410+STL, No.8
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, NACE MR0175, For high temperature
Product Range:
Body material: Carbon Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel, Gear, Motor Actuator
