Key Specifications / Features
Model No. : 0.5BB15NLF2
Discover high-quality ASTM A350 LF2 ball valves from a trusted manufacturer. Our valves are designed for optimal performance, featuring a 1/2-inch size, DN15 specifications, Class 1500 LB and PN250 ratings. Compliant with API 608, ISO 17292, and API 6D standards, these valves boast FNPT threaded ends for easy installation. Crafted with SS 316 trim, RPTFE seat, and a full bore design, our ball valves ensure reliable and efficient operation in diverse industrial applications. Invest in precision engineering for superior control and durability.
Categories
Floating Ball Valve
Tags:
ASTM A350 LF2 Ball Valve
, ISO 17292 Ball Valve
, 1/2 Inch Ball Valve
.

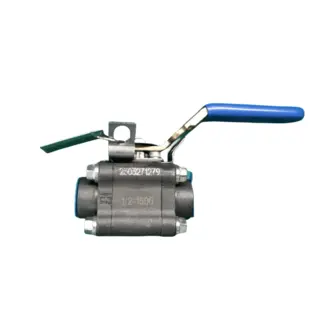

1/2 inch, 1500 LB, Floating Ball Valve, FNPT Threaded End, ISO 17292, LF2 body with 316 Trim, RPTFE seat and lever operation
Valve Description:
1812035 Floating Ball Valve 0.5BB15NLF2
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1/2 Inch, DN15
Nominal class: 1500 LB
Bore Type: Full Bore
End Connection: FNPT
Operation: Lever Lockable
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
