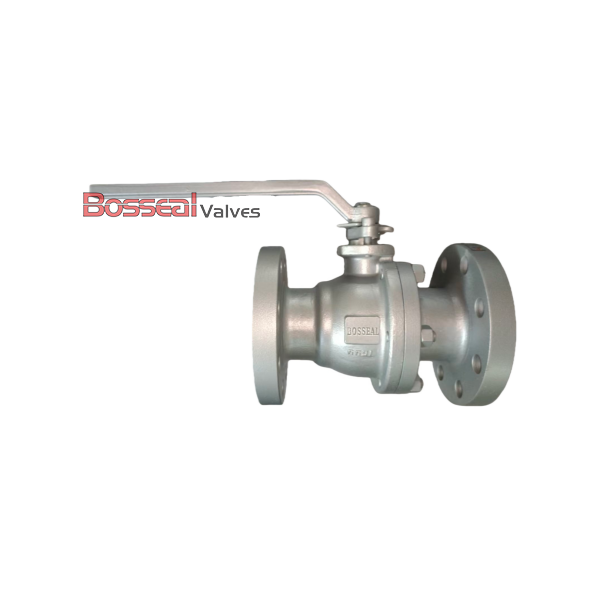

ASTM A351 CF3 Floating Ball Valve, API 6D, 3/4 IN, CL300 LB

Key Specifications / Features

Model No. : 181203010

This 3/4 Inch (DN20), Class 300 LB 2-Piece Floating Ball Valve is engineered to API 6D standards, featuring a durable ASTM A351 CF3 body for excellent corrosion resistance. The valve incorporates LF2+ENP trim and a soft seat to ensure reliable, bubble-tight shutoff, even under high-pressure conditions. RF flanged ends provide secure installation, while the lever operation enables smooth and precise control. Designed for chemical, petrochemical, and industrial fluid systems, this valve combines high performance, long service life, and low maintenance requirements. As a leading 2-Piece Floating Ball Valve Factory in China, we deliver premium valves to meet global industrial standards.


Detail Information

Valve Description:
181203010 Floating Ball Valve
Design Standard: ISO 17292, API 608, API 6D
Structure: 2pcs body, Side Entry, Bolted Bonnet, Soft Seat
Sizes: 3/4 Inch, DN20, 20 mm
Pressure Rating: Class 300 LB, PN50
Bore Type: Full Bore or Reduced Bore
End Connection: RF, RTJ
Operation: Lever
Body Material: ASTM A105N or A350 LF2 or A182 F316, WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A, C95800
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to face: Manufacturer Standard
Test and inspection: API 598, API 6D
Key Features: Anti-static, Fire Safe, Anti-Blowout Stem

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 Inch - 6 Inch (DN15 – DN150)
Pressure range: Class 150 LB - 300 LB
End connection: Flanged
Working temperature: -26°C - +210°C
Operation: Manual(lever), Pneumatic Actuator
