Key Specifications / Features
Model No. : 2B1RCF8

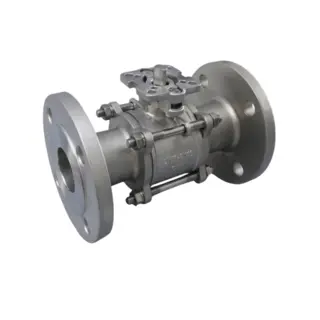

Discover our top-quality Flanged Floating Ball Valve, compliant with API 608 standards. This valve features a DN50 size, PN16 pressure rating, and flanged connection. Constructed with an A351 CF8 Body and equipped with F304 Trim, it ensures durability and reliability. The soft seat enhances sealing performance. Designed with an ISO 5211 Mounting pad, this valve is a versatile choice for various industrial applications.
Categories
Floating Ball Valve
Tags:
ASTM A351 CF8 Ball Valve
, 2 Inch Ball Valve
, Class 150 LB Ball Valve
.
Flanged Floating Ball Valve, API 608, DN50, PN16, Flanged, A351 CF8 Body, F304 Trim, Soft Seat, ISO 5211 Mounting pad
Valve Description:
1812016 Floating Ball Valve 2B1RCF8
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat, O-ring for stem and body joint
Nominal size: 2 Inch, DN50
Nominal class: Class 150 LB, PN16
Bore Type: Full Bore
End Connection: Flanged
Operation: Bare Shaft
Body Material: ASTM A351 CF8
Trim Material: ASTM A182 F304, RPTFE/TFM 1600
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Stainless Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 300LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator

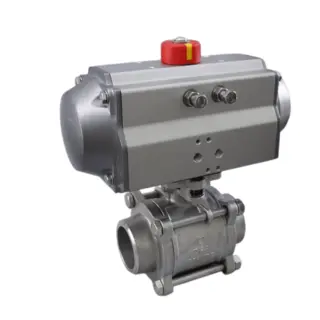

Next: Pneumatic Actuated Ball Valve, ASTM A351 CF8, 2 IN, 1000 WOG
