Key Specifications / Features
Model No. : 2STY1RCF8M
We Provide Y Strainers, ASTM A351 CF8M, 2 Inch, 150 LB, ASME B16.34, DN50, PN20, RF Flanged End, Y Type, SS 316 Screen, Mesh 40, with Drain.

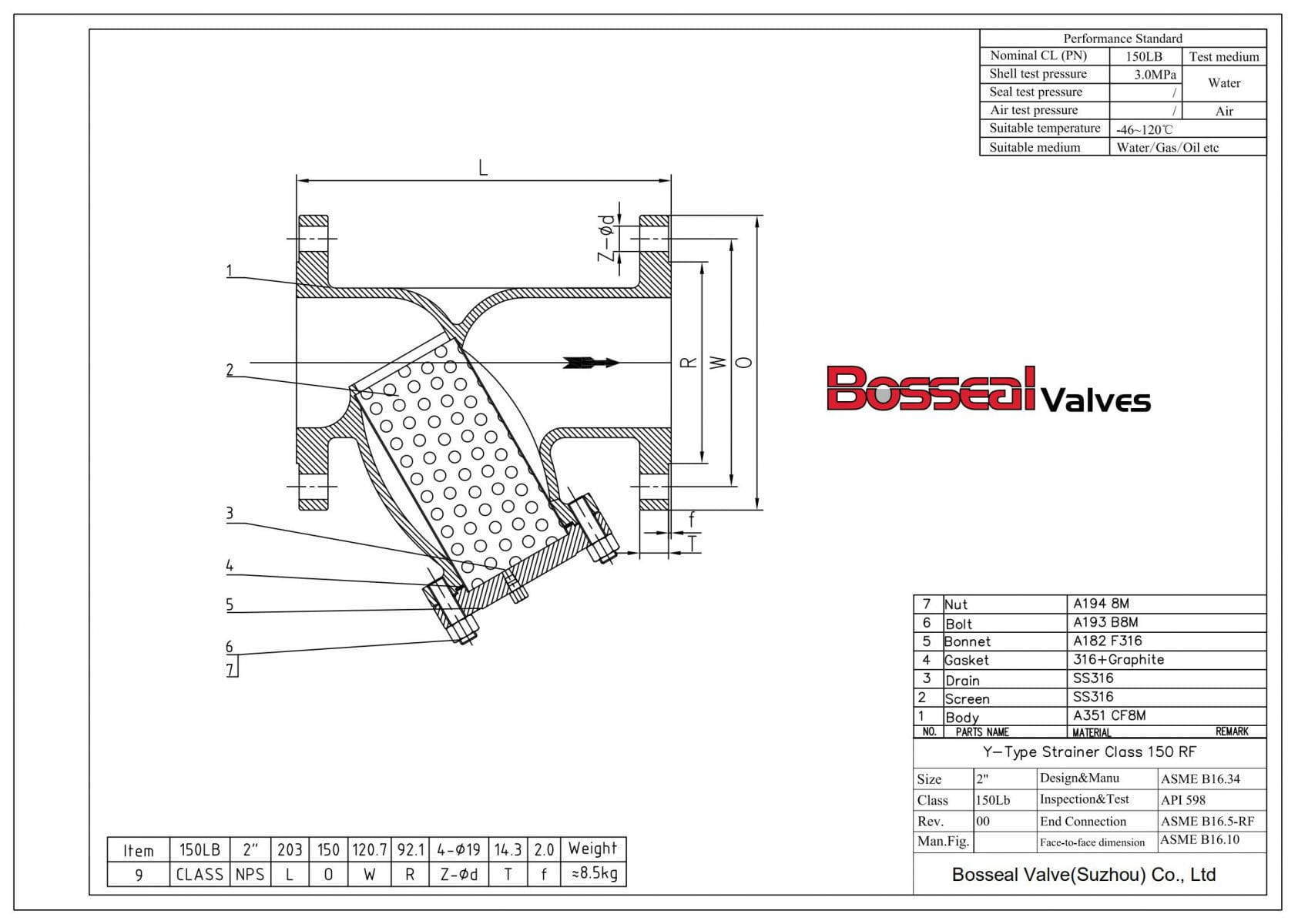

ASTM A351 CF8M Y Strainer, 2 Inch, 150 LB, ASME B16.34
Detail Information
ASTM A351 CF8M Y Strainer, 2 Inch, 150 LB, RF, SS 316 Screen, Mesh 40, with Drain
Valve Description:
Y Strainer
Design Standard: ASME B16.34
Structure: Y Type
Nominal size: 2 Inch
Nominal class: 150 LB
End Connection: Flanged End
Operation: /
Body Material: ASTM A351 CF8M
Trim Material: SS316 Screen, Mesh 40
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Integral Flange, long working life, good flow efficiency
Product Range:
Body material: ASTM A216 WCB, Stainless Steel, Duplex steel, Al-Bronze
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 1500 LB
End connection: Flanged, Thereaded, Socket Welded
Working temperature: -29℃ - +400℃
