ASTM A352 LCB Trunnion Mounted Ball Valve, 2 Inch, 300 LB

Key Specifications / Features
Model No. : 2BS3RLCB

Looking for a reliable Trunnion Mounted Ball Valve for low-temperature application? Look no further than this ASTM A352 LCB valve, designed with API 6D standards, a 2-inch size, 300 LB rating, and an RF connection. This valve features a corrosion-resistant 17-4PH stem, F316 ball and seat, and RPTFE seat. Operated by a lever, this valve complies with Nace MR0175 requirements, making it ideal for heavy-duty industrial applications.

Categories Trunnion Mounted Ball Valve

Tags: Trunnion Ball Valve , 2 Inch Ball Valve , API 6D Ball Valve .

Detail Information
ASTM A352 LCB Trunnion Mounted Ball Valve for Low Temperature, API 6D, 2 Inch, 300 LB, RF, 17-4PH stem, F316 ball & seat, RPTFE seat, Lever Operation, Nace MR0175

Valve Description:
1811023 Trunnion Mounted Ball Valve 2BS3RLCB
Design Standard: API 6D
Structure: Two pieces casting body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 2 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lockable Lever
Body Material: ASTM A352 LCB
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN15 - DN1200)
Pressure range: Class 150 - 900 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator

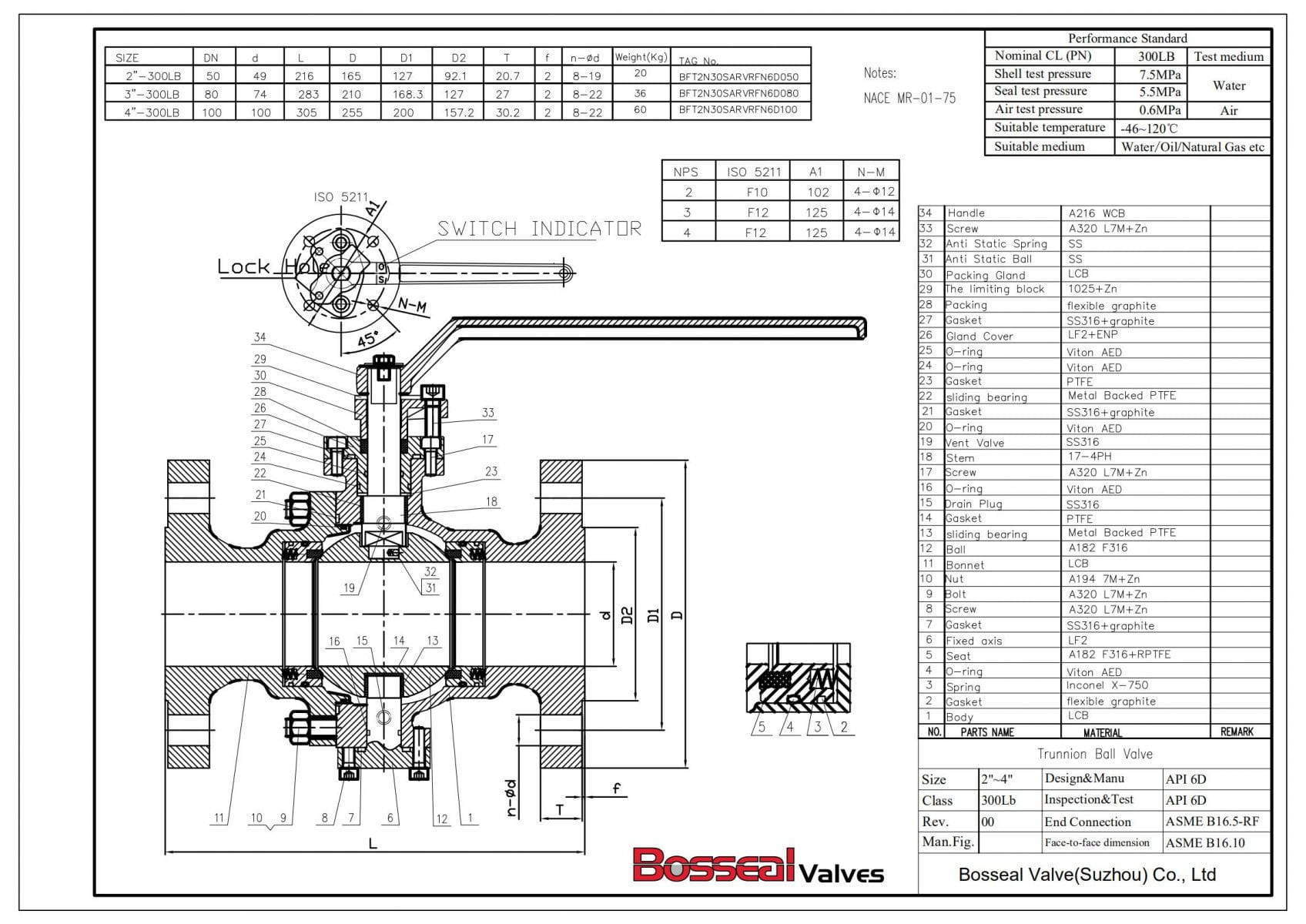

LCB Trunnion Mounted Ball Valve Tech Drawing
