Key Specifications / Features

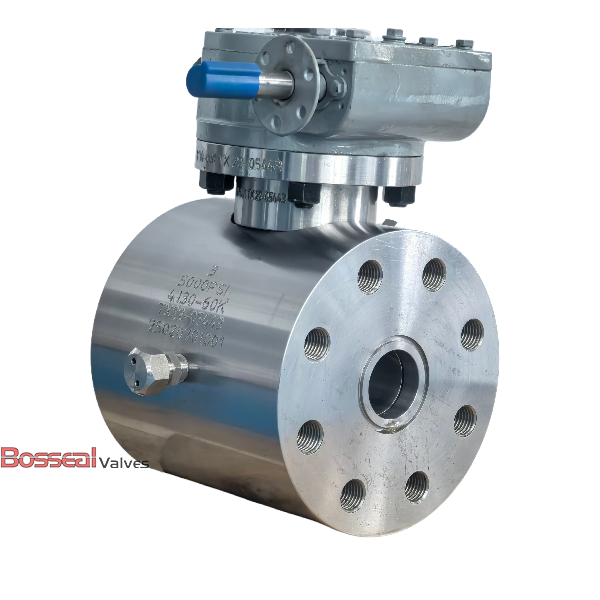

As a leading compact ball valves manufacturer in China, we deliver precision-engineered valves built to API 6A and API 6D standards for reliable performance in demanding industries. Manufactured with strong ASTM A694 F60/F65 bodies and equipped with 17-4PH or Inconel trims, these valves provide exceptional strength, corrosion resistance, and long service life. Offered in 3-1/8 inch sizes with a 2000 PSI pressure rating, they are available with RTJ or butt-weld (BW) ends to suit various installation needs. Operable by lever, gear, or actuation systems, our compact ball valves ensure efficient, durable, and safe flow control for critical oil and gas applications.
Valve Description:
181105005 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
