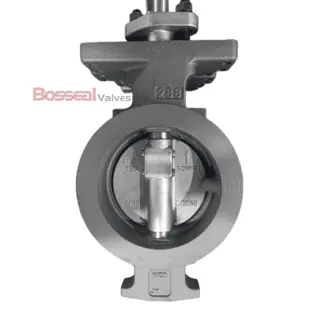

ASTM A890 4A Butterfly Valve, EN 593, API 609, CL300, 40 IN

Key Specifications / Features

Model No. : 1862198
We fabricate high-performance double-offset butterfly valves designed to meet API 609 and EN 593 standards. Made from durable ASTM A890 4A material, these 40-inch valves are rated for 300 LB pressure, offering exceptional strength and reliability. Featuring a 17-4PH stem for superior durability and an RPTFE seat for tight, reliable sealing, these valves are perfect for demanding industrial applications. The wafer ends ensure easy installation and maintenance. As a trusted fabricator, we deliver high-performance solutions built for efficiency and long-lasting performance in every operation.

Detail Information

API 609 High-Performance Butterfly Valve, Double Offset, RPTFE Seat, 40 Inch, 300 LB, Gear Operation.

Valve Description

1862198 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 40 Inch
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A890 4A, ASTM A351 CF8, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, Titanium.
Seat: RPTFE, PPL
End Connection: Wafer
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Structure: Double Offset, Double Eccentric
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
