ASTM A995 6A Dual Plate Check Valve, 10 Inch, 300 LB, API594

Name: ASTM A995 6A Dual Plate Check Valve, 10 Inch, 300 LB, API594
SKU: 10sbs3w6a
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : 10SBS3W6A

This DN250 Class 300 dual plate check valve features a soft seat and is constructed from high-quality A995 6A/S32760/F55/1.4501/CD3MWCuN materials. It conforms to API 594 standards, has a wafer-end connection, and is equipped with a Viton seat—a reliable and efficient valve for industrial applications.

Request a quote

Categories Dual Plate Check Valve

Tags: ASTM A890 6A Check Valve , 10 Inch Check Valve , API 594 Check Valve .

Detail Information

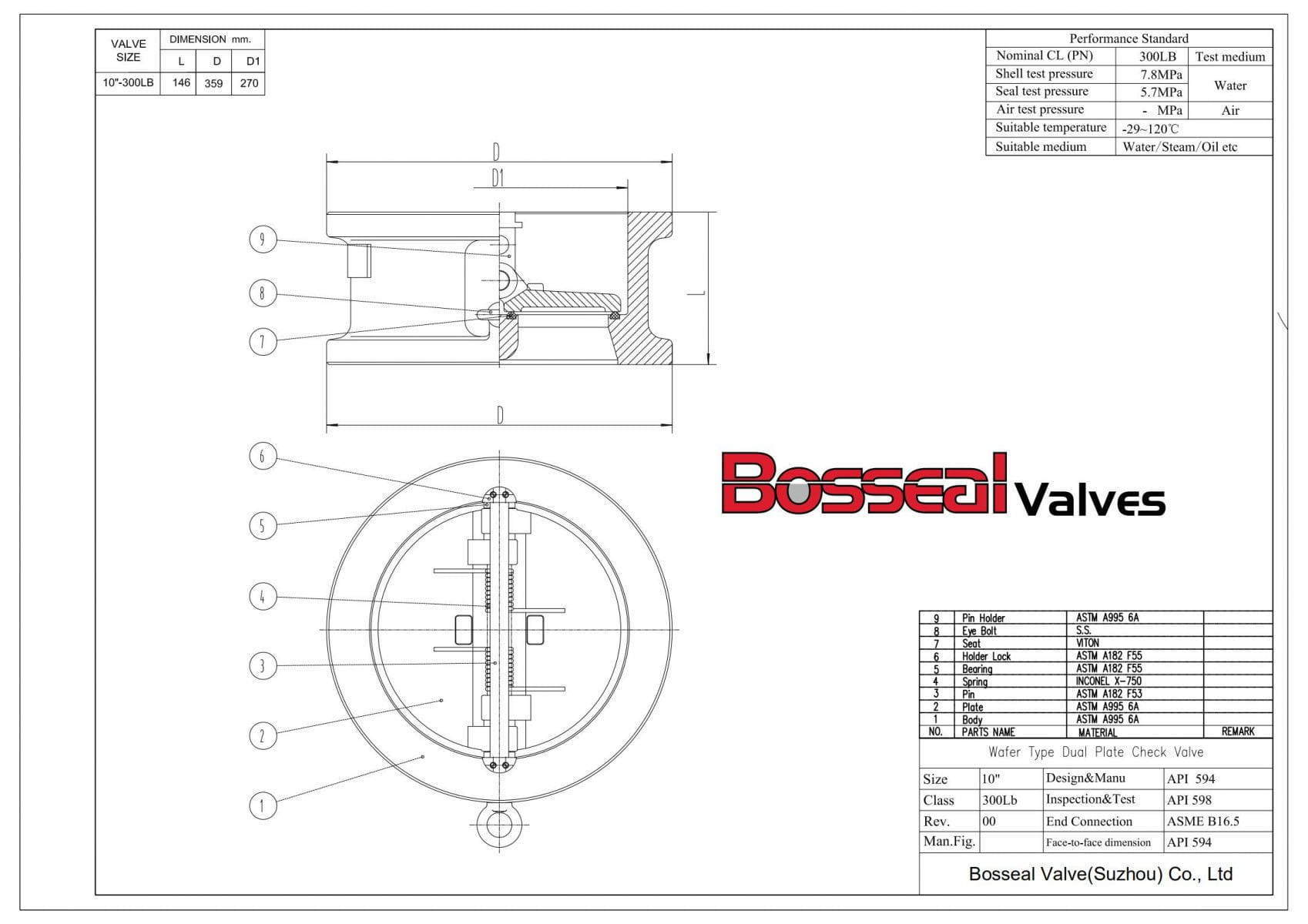

DN250 Class 300 Soft Seat Dual Plate Check Valve, A995 6A/S32760/F55/1.4501/CD3MWCuN, API 594, Wafer End, Viton Seat

Valve Description:
1842010 Dual Plate Check Valve 10SBS3W6A
Design Standard: API 594, API 6D
Structure: Dual Plate spring return
Nominal size: 10 Inch
Nominal class: 300 LB
End Connection: Wafer-RF
Operation: /
Body Material: ASTM A995 6A
Trim Material: A995 6A disc, X-750 Spring, Viton seat
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, High flow efficiency, Low noise, Short face-to-face length, High Anti-corrosion material, seawater service

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -29℃ - +400℃
Operation: /
