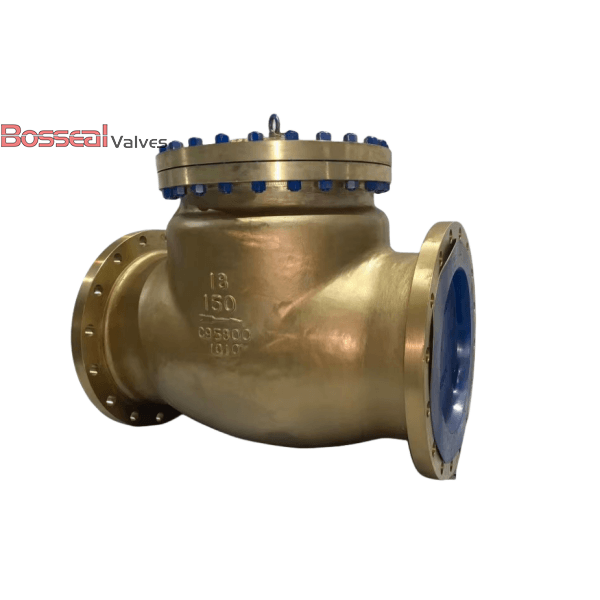

ASTM B148 C95800 Check Valve, BS 1868, 20 IN, BB, RF Flanged

Name: ASTM B148 C95800 Check Valve, BS 1868, 20 IN, BB, RF Flanged
SKU: ckv-187306033
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Home/Products/Check Valves/Swing Check Valve/ASTM B148 C95800 Check Valve, BS 1868, 20 IN, BB, RF Flanged

Key Specifications / Features

Model No. : CKV-187306033

As a reliable swing check valve provider in China, we supply premium valves designed to meet the standards of BS 1868 and API 6D for dependable performance and flow control. Our swing check valves are built with a robust bolted bonnet and a high-quality aluminum bronze body using ASTM B148 C95800 material, ensuring excellent resistance to corrosion in harsh environments. Available in a 20-inch size and rated for Class 300 LB, these valves come with flat face (FF) or raised face (RF) flanged ends, providing versatility, secure connections, and easy maintenance for your pipeline systems.

Request a quote

Tags:

ASTM B148 C95800 Check Valve

BS 1868 Check Valve

20 Inch Check Valve

Detail Information

Valve Description:
187306033 Aluminum Bronze Check Valve, Swing Check Valve
Design Standard: API 6D, BS 1868, API 594

Nominal Size: 20 Inch
Nominal Class: 300 LB
Face to Face: ASME B16.10
Bore Type: Full Bore(API 6D) or Standard Bore(BS 1868, API 594)
End Connection: FF or RF Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Test and Inspection: API 598
Structure: Bolted Bonnet
Key Features: Bolted Bonnet, Full Opening design available, Operation Lever design Available, Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Not Applicable (Manual or actuated available for special request)
