Key Specifications / Features

Model No. : 18S1RC958

Discover premium swing-type check valves from our collection, featuring an 18-inch size, CL 150 LB rating, and compliance with API 594 and BS 1868 standards. Crafted with ASTM B148 C95800 body and trim, flanged RF design, bolted bonnet, swing disc, and renewable seat for optimum performance.


Detail Information

18 Inch 150 LB Swing Check Valve, Flanged RF, BS 1868, B148 C95800 body and Trim

Valve Description:
1841008 Swing Check Valve 18S1RC958
Design Standard: BS 1868, API 594
Structure: Bolted Bonnet, Swing type
Nominal size: 18 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF
Operation: /
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Swing Disc, Renewable Seat, for seawater, FPSO, Offshore

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 32 Inch (DN50 - DN800)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +400℃
Operation: /



Name*
E-mail*
Rate*
Comments*

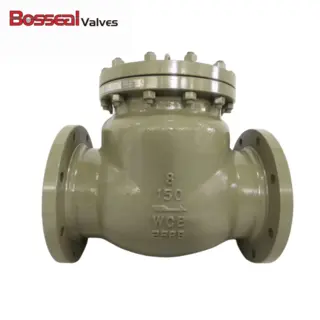

Next: ASTM A216 WCB Swing Check Valve, 8 Inch, 150 LB, API 594, RF
