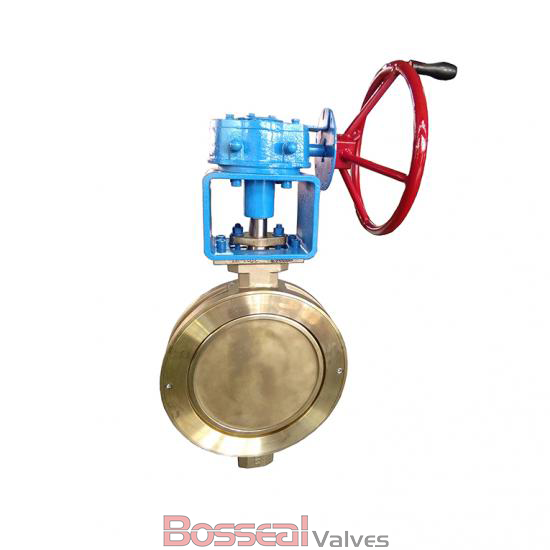

ASTM B148 C95800 Wafer Butterfly Valve, CL300, 6 IN, API 609

Home/Products/Butterfly Valves/Double Offset Butterfly Valve/ASTM B148 C95800 Wafer Butterfly Valve, CL300, 6 IN, API 609
ASTM B148 C95800 Wafer Butterfly Valve, CL300, 6 IN, API 609

Key Specifications / Features

Model No. : 1862310
As a leading aluminum bronze butterfly valve factory, we produce high-performance valves designed to API 609 Category B standards. Our 6-inch, Class 300 LB valves feature a double eccentric design and are constructed from ASTM B148 C95800 aluminum bronze for superior corrosion resistance and durability. Equipped with a Monel K500 stem, these valves provide enhanced strength and reliability in demanding environments. Ideal for high-performance industrial applications, they ensure tight sealing, excellent control, and long-lasting operation.

Detail Information

API 609 Wafer Butterfly Valve, 6 Inch/DN150, 300 LB, Gear Operation.

Valve Description

1862310 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Nominal Size: 6 Inch, DN150
Nominal Class: Class 300 LB, PN50
Body Material: ASTM B148 C95800, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 5A, ASTM A890 4A, Titanium.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
Structure: Double Offset, Double Eccentric
End Connection: Wafer
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2  - 48 Inches (DN15 - DN1200)
Pressure Range: CL 150, 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
