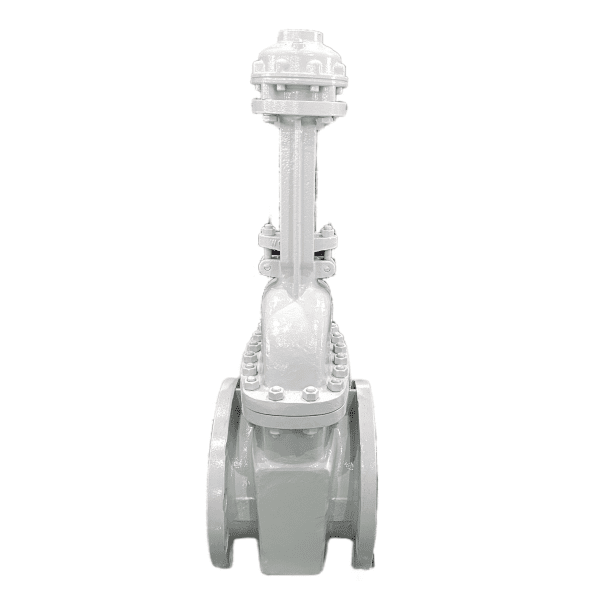

Bolted Bonnet Gate Valve, API 600, WCB, 16 Inch, 150 LB

Key Specifications / Features

Model No. : 16G1RWCB08

Shop our high-quality DN400 Gate Valve, compliant with API 600 standards and featuring OS & Y design, RF flanges, and WCB Trim 8 material. With a size of 16 inches and a pressure rating of 150 LB, this valve is perfect for a range of industrial applications. Its gear operation ensures smooth and precise control, making it a reliable choice for your project needs.


Detail Information

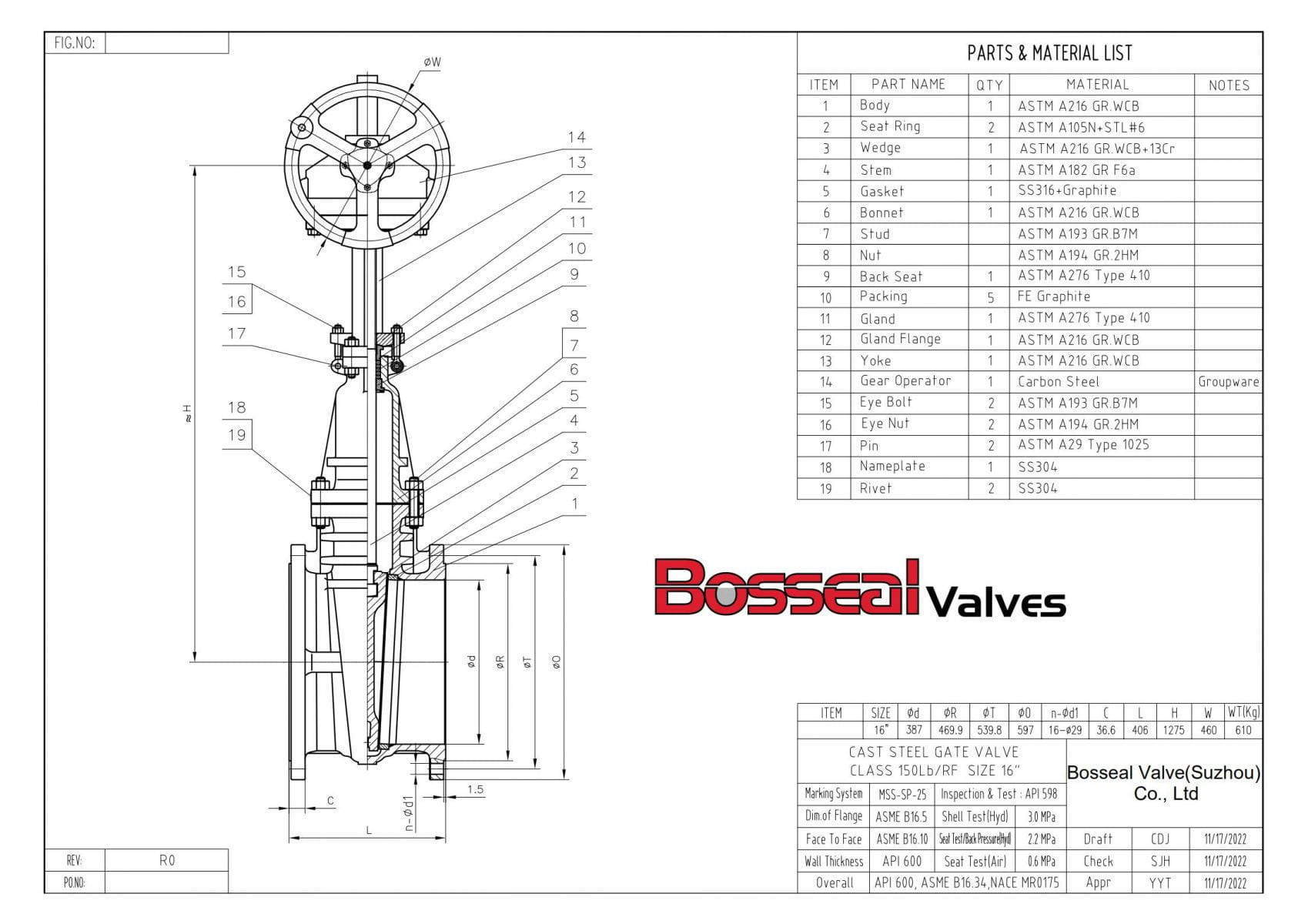

DN400 Gate Valve, API 600, OS & Y, 16 Inch, 150 LB, RF, WCB Trim 8, Gear Operation

Valve Description:
1821012 Gate Valve 16G1RWCB08
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 16 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Gear Operation
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL, No.8
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, NACE MR0175

Product Range:
Body material: Carbon Steel, Stainless Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
