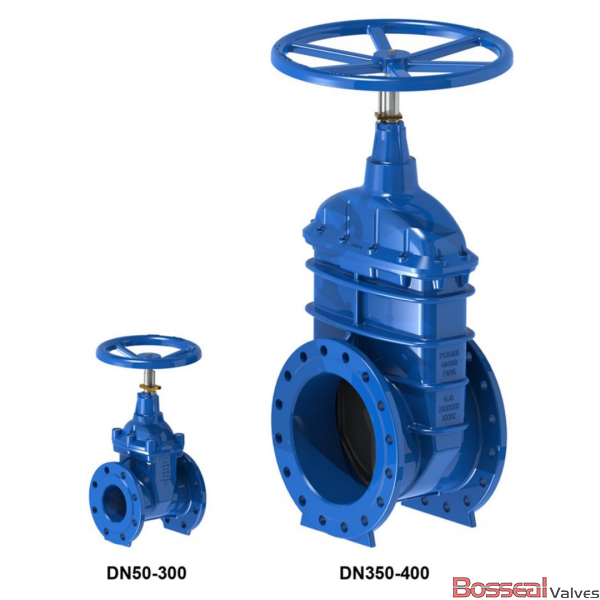

BS 5163 Gate Valve, DN350, PN15, ASTM A536, Resilient Seated

Key Specifications / Features

Model No. : 1871019

As a premier supplier of resilient seated gate valves from China, we offer products designed to meet BS 5163 standards. Our DN350 (14-inch) valves are constructed from ASTM A536 ductile iron and are rated for PN15 pressure. They feature flanged ends for easy installation and are coated with Fusion Bonded Epoxy on both internal and external surfaces for exceptional corrosion resistance. These valves are engineered to provide reliable performance in various industrial applications, ensuring durability and long-lasting functionality.

Detail Information

Resilient Seated Gate Valve, BS 5163, DN350/14 Inch, PN15, ASTM A536 Body, Flanged End.

Valve Description

1871019 Gate Valve
Design Standard: BS 5163, AWWA, DIN 3352
Structure: Resilient Seat, Rising Stem
Nominal Size: DN350, 14 Inch
Nominal Class: PN15
Body Material: ASTM A536, Cast Iron, Ductile Iron-GGG40, GGG50
Trim Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
Bore Type: Standard Bore
Operation: Handwheel, Gear
Face to Face: EN558-3, DIN 3352-F4, DIN 3352-F5
Test and Inspection: EN 12266-1, DIN 3230
End Connection: Flanged

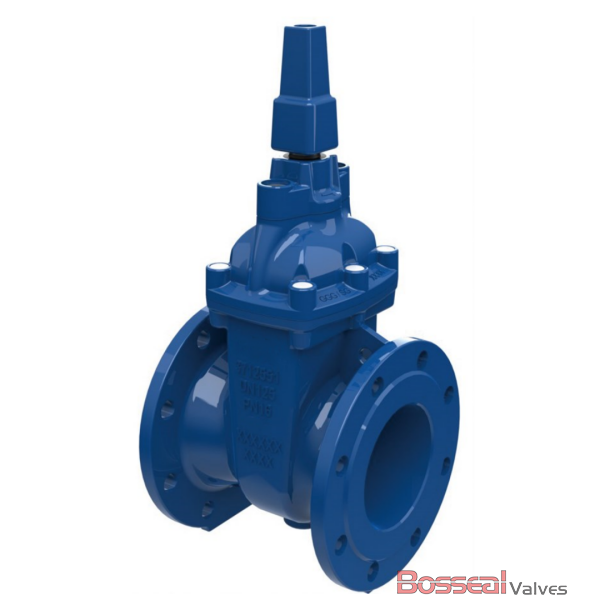

Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, PIV available, metal seat available, WRAS, AWWA available

Product Range

Body Material: Ductile Iron, Cast Iron
Normal Diameter: 1/2 Inch - 80 Inch (DN15–DN2000)
Pressure Range: PN10, PN16
Suitable Service: Water
End Connections: Flanged(FF, RF, RTJ), Socket Weld(SW), Threaded(NPT, BSP), Butt Weld(BW).
Working Temperature: -29°C - +80°C
