Key Specifications / Features

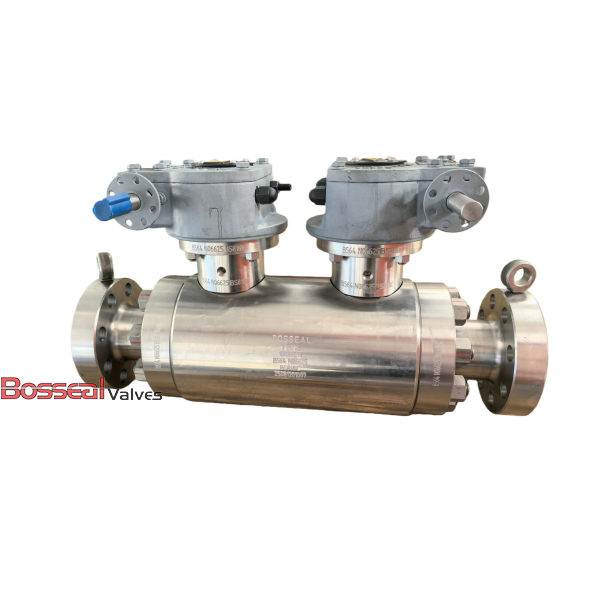

Built for demanding high-pressure service, this DBB Trunnion Ball Valve is engineered in compliance with BS 5351 and API 6D standards, ensuring reliable performance in critical pipeline systems. The valve body is manufactured from ASTM A182 F53 super duplex stainless steel, delivering outstanding strength, corrosion resistance, and long-term durability in harsh environments such as offshore, oil & gas, and chemical processing. Sized at 8 Inch (DN200 / 200 mm) and rated Class 900 LB / PN150, it features RTJ flanged ends for secure, leak-tight connections under high pressure. The gear-operated mechanism provides smooth, precise operation and reduced torque requirements. As a leading DBB Trunnion Ball Valve Factory in China, we deliver high-quality, precision-engineered valves for global industrial applications.
Valve Description:
181302069 DBB Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Nominal Size: 8 Inch, DN200, 200 mm
Nominal Class: Class 900 LB, PN150
Body Material: ASTM A182 F53, ASTM A182 F316, ASTM A350 LF2, ASTM A105N, ASTM A182 F51, ASTM A182 F55, Inconel 625, ASTM A182 F304
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
Structure: Full Welded
Operation: Gear
Test and Inspection: API 598, API 6D
End Connection: RTJ Flanged
Bore Type: Full Bore or Reduced Bore
Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
