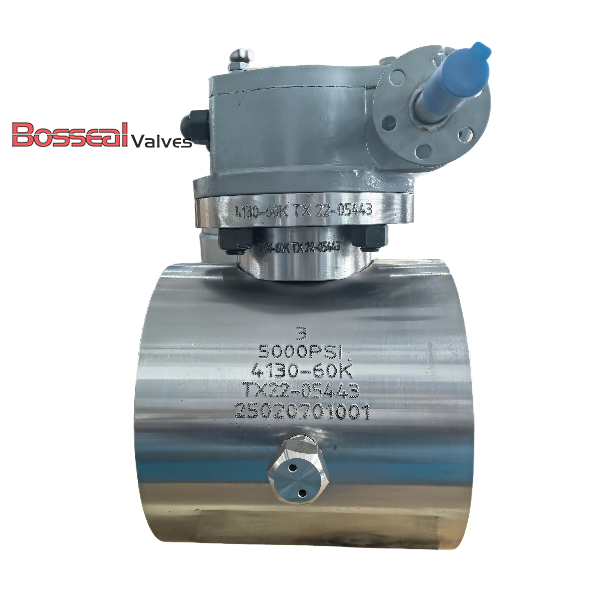

Compact Ball Valves, API 6D, 4130/F65, 7-1/16 IN, 5000 PSI

Key Specifications / Features

Model No. : BV-181105056

As a leading Compact Ball Valves supplier in China, we provide high-quality valves engineered to meet API 6D standards for demanding industrial applications. Constructed with robust AISI 4130 or ASTM A694 F65 bodies, these 7-1/16 inch valves offer exceptional strength, durability, and resistance to high-pressure environments. The trim, made from 17-4PH or Inconel, ensures superior corrosion and wear resistance. Available with either soft-seat or metal-seat configurations and RTJ end connections, these compact ball valves deliver reliable sealing, precise flow control, and long-term performance, making them ideal for oil, gas, petrochemical, and other high-pressure industrial systems.


Detail Information

Valve Description:
181105056 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
Test and Inspection: API 6A/API 6D
Operation: Lever/Gear/Bare Shaft
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
End Connection: RTJ, BW, and Hub

Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
