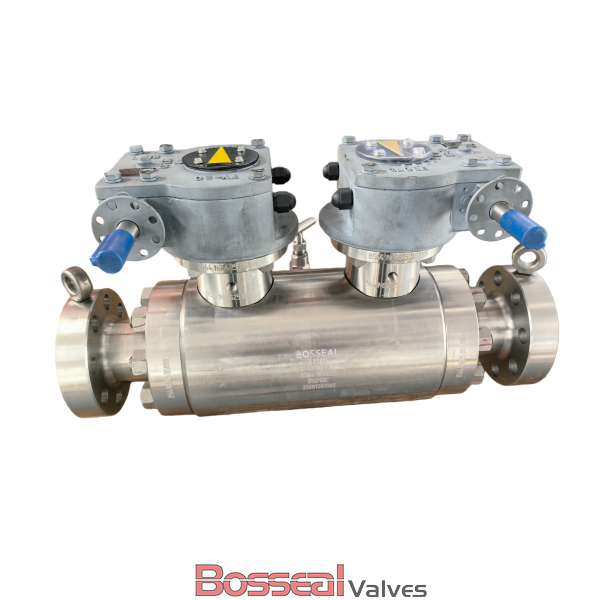

Double Block and Bleed Ball Valve, Inconel 625, 30 Inch, DBB

Key Specifications / Features

Model No. : 181302037

This trunnion-mounted double block and bleed ball valve is engineered to meet API 6D requirements for demanding pipeline applications. Featuring a corrosion-resistant Inconel 625 body with durable F55 trim, it offers exceptional strength and reliability in aggressive service conditions. The 30-inch valve is rated for Class 300 LB pressure and designed with a double ball configuration to ensure effective isolation and safe bleed-off between seats. RF flanged ends provide secure, leak-tight connections, while gear operation allows smooth and precise control. As a leading double block and bleed (DBB) ball valve factory in China, we deliver high-performance valves with dependable quality and long service life.


Detail Information

Valve Description:
181302037 Trunnion Mounted Ball Valve, Double Block and Bleed (DBB) Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 30 Inch, DN750
Nominal Class: Class 300 LB, PN50
Operation: Gear
Test and Inspection: API 598, API 6D
Face to Face: ASME B16.10
Bore Type: Full Bore or Reduced Bore
Structure: Full Welded
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Body Material: Inconel 625, ASTM A105N, ASTM A182 F316, ASTM A182 F53, ASTM A182 F51, ASTM A182 F304, ASTM A350 LF2, F55
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
End Connection: RF Flanged

Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
