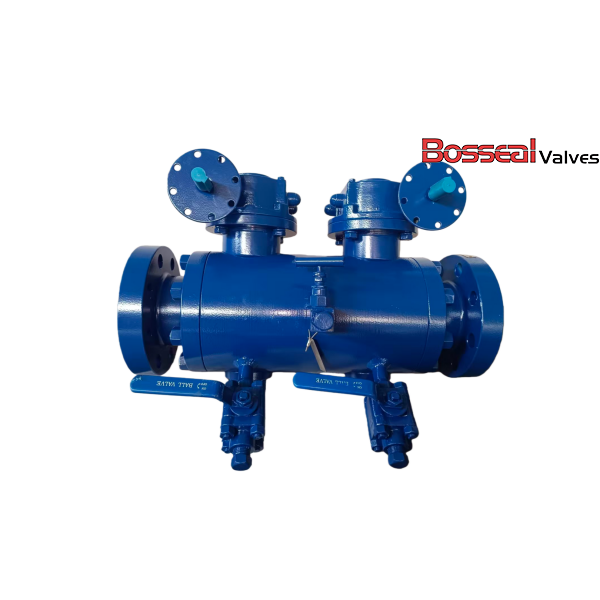

Double Block & Bleed Ball Valve, BS 5351, A182 F51, 4 IN, RF

Key Specifications / Features

Model No. : 181302004

This 4-inch (DN100) Double Block & Bleed Ball Valve is manufactured to BS 5351 standards, featuring a high-strength ASTM A182 F51 duplex stainless steel body and trim for superior corrosion resistance and mechanical performance. Rated at Class 150 LB, it is equipped with RF flanged ends and a fully welded construction to ensure leak-tight sealing and long-term reliability. The lever-operated design allows smooth, precise control and safe isolation in critical pipeline systems. As a leading Double Block & Bleed ball valve provider in China, we deliver dependable, high-quality solutions for global industries.


Detail Information

Valve Description:
181302004 DBB Trunnion Mounted Ball Valve
Design Standard: BS 5351, API 6D
Structure: Full Welded
Nominal Size: 4 Inch, DN100, 100mm
Nominal Class: Class 150 LB, PN20
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Body Material: ASTM A105N, ASTM A350 LF2, F304, F316, ASTM A182 F51, F53, F55, Inconel 625
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55, A105+ENP, LF2+ENP
Test and Inspection: API 598, API 6D
Bore Type: Full Bore or Reduced Bore
Operation: Lever
Face to Face: ASME B16.10
End Connection: RF Flanged

Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
