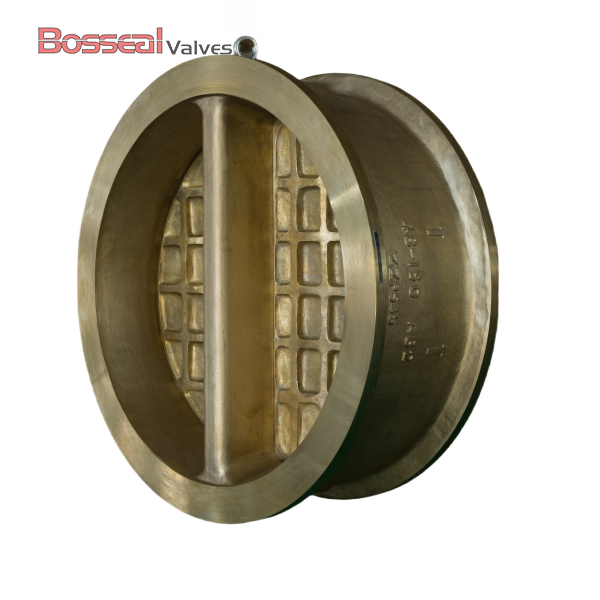

Double Disc Check Valves, ASTM B148 C95800, 40 Inches, CL300

Name: Double Disc Check Valves, ASTM B148 C95800, 40 Inches, CL300
SKU: ck-187303040
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Home/Products/Check Valves/Dual Plate Check Valve/Double Disc Check Valves, ASTM B148 C95800, 40 Inches, CL300

Key Specifications / Features

Model No. : CK-187303040

We are a leading provider of double disc check valves, offering high-quality, spring-loaded dual plate designs built to API 594 standards. Crafted from corrosion-resistant ASTM B148 C95800 aluminum bronze, both the body and disc ensure durability and performance in demanding environments. Our valves are available in large sizes up to 40 inches with a Class 300 LB pressure rating, making them ideal for marine, offshore, and industrial applications. Choose from wafer, lug, or flanged end connections for easy integration into your pipeline system, ensuring reliable backflow prevention and efficient fluid control.

Request a quote

Tags:

Double Disc Check Valve

ASTM B148 C95800 Check Valve

40 Inch Check Valve

Detail Information

Valve Description:
187303040 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 40 Inch
Nominal Class: Class 300 LB
Test and Inspection: API 598
Bore Type: NA
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
End Connection: Wafer/LUG/Double Flanged

Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)
