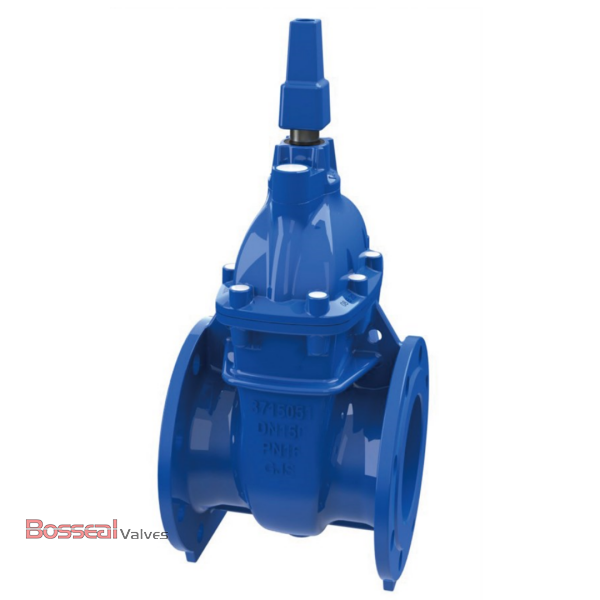

Flanged Resilient Gate Valve, DN200, PN15, DIN 3352, A536

Key Specifications / Features

Model No. : 1871016

As a leading manufacturer of flanged resilient gate valves in China, we produce valves that conform to DIN 3352 standards. Our DN200 (8-inch) valves are constructed from high-quality ductile iron and are rated for PN15 pressure. Designed for durability and reliable performance, they feature a resilient seat with options for EPDM, NBR, or Viton materials, ensuring a secure seal for various applications. With flanged ends for easy installation, these valves are engineered to meet the needs of diverse industrial environments.

Detail Information

Ductile Iron Resilient Gate Valve, DIN 3352, DN200, PN15, ASTM A536 Body.

Valve Description

1871016 Gate Valve
Design Standard: BS 5163, AWWA, DIN 3352
Structure: Resilient Seat, Rising Stem
Nominal Size: DN200, 8 Inch
Nominal Class: PN15
Body Material: ASTM A536, Cast Iron, Ductile Iron-GGG40, GGG50
Trim Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
Bore Type: Standard Bore
Operation: Handwheel, Gear
Face to Face: EN558-3, DIN 3352-F4, DIN 3352-F5
Test and Inspection: EN 12266-1, DIN 3230
End Connection: Flanged
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, PIV available, metal seat available, WRAS, AWWA available

Product Range

Body Material: Ductile Iron, Cast Iron
Normal Diameter: 1/2 Inch - 80 Inch (DN15–DN2000)
Pressure Range: PN10, PN16
Suitable Service: Water
End Connections: Flanged(FF, RF, RTJ), Socket Weld(SW), Threaded(NPT, BSP), Butt Weld(BW).
Working Temperature: -29°C - +80°C
