Key Specifications / Features

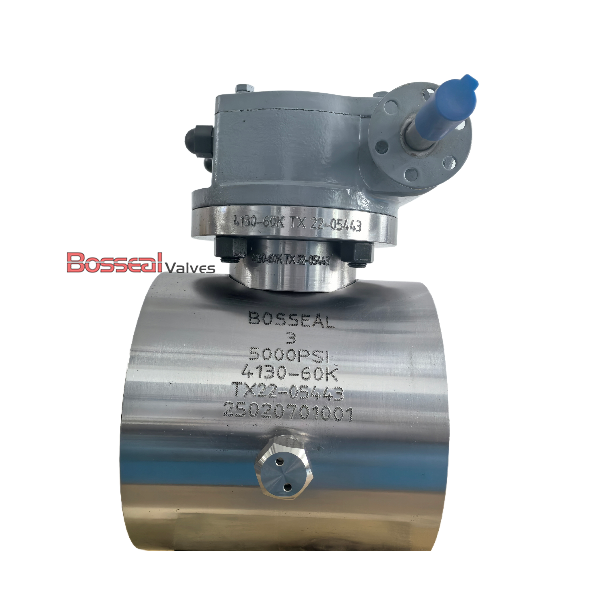

As a leading forged ball valve factory in China, we specialize in high-performance valves designed to meet API 6D and API 6A standards. Our valves feature soft seats and robust ASTM A694 F60/F65 bodies with 17-4PH or Inconel trims, ensuring durability, corrosion resistance, and reliable operation under demanding conditions. Available in 2-9/16 inch sizes with a 2000 PSI rating, these valves come with RTJ ends and can be operated via lever or gear actuators. Ideal for oil, gas, and industrial applications, our forged ball valves combine precision engineering, versatility, and long-lasting performance.
Valve Description:
181105003 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: 4130/ASTM A694 F60/A694 F65
Trim Material: 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
